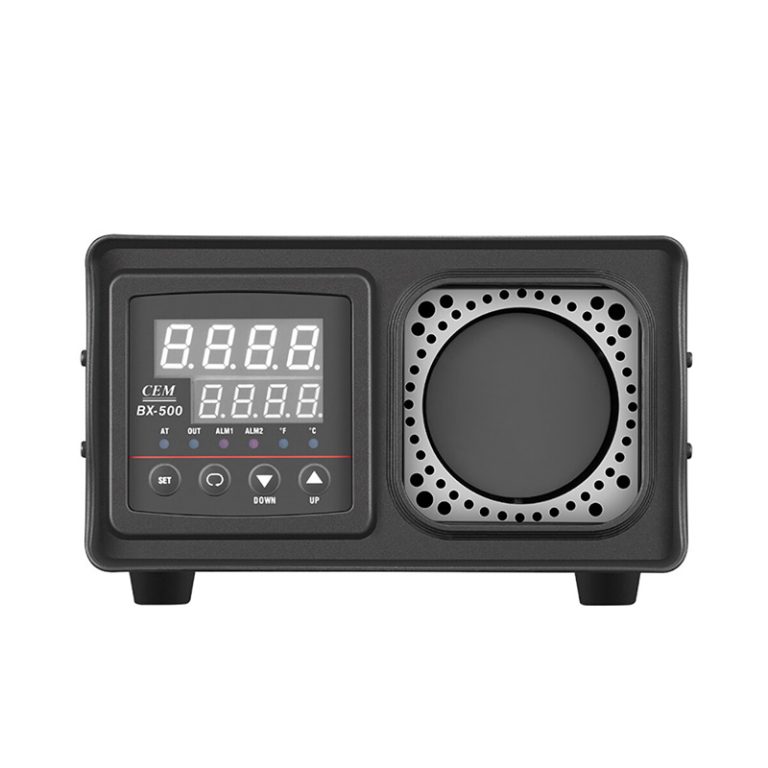

| Description This is used for calibrating long distance Infrared Thermometer, which are designed as handheld and fixed units. Whether you’re using on-line or handheld infrared pyrometers, you need a high performance calibration standard to verify accuracy. Portable IR Calibrator provides a stable black body target for calibrating non-contact IR thermometers up to 500℃. The portable IR calibrator features a large temperature controlled blackbody target with a diameter of 2.25’’ (57mm), which offers a wide field of view area for optical variations in IR thermometers. With an emissivity of 0.95, the isothermal target can be controlled in set-point increments of 0.1°from 50℃ to 500℃. For even higher precision, a contact calibration well is located directly behind the blackbody surface. Using an optional digital RTD thermometer and calibrated secondary probe, accuracies of ±0.1℃ can be achieved. |
| Features Easily certify IR pyrometers to 500/932 Large 2.25’’ (57mm) blackbody target RTD (Resistance Thermometer detector) reference well for high precision |
