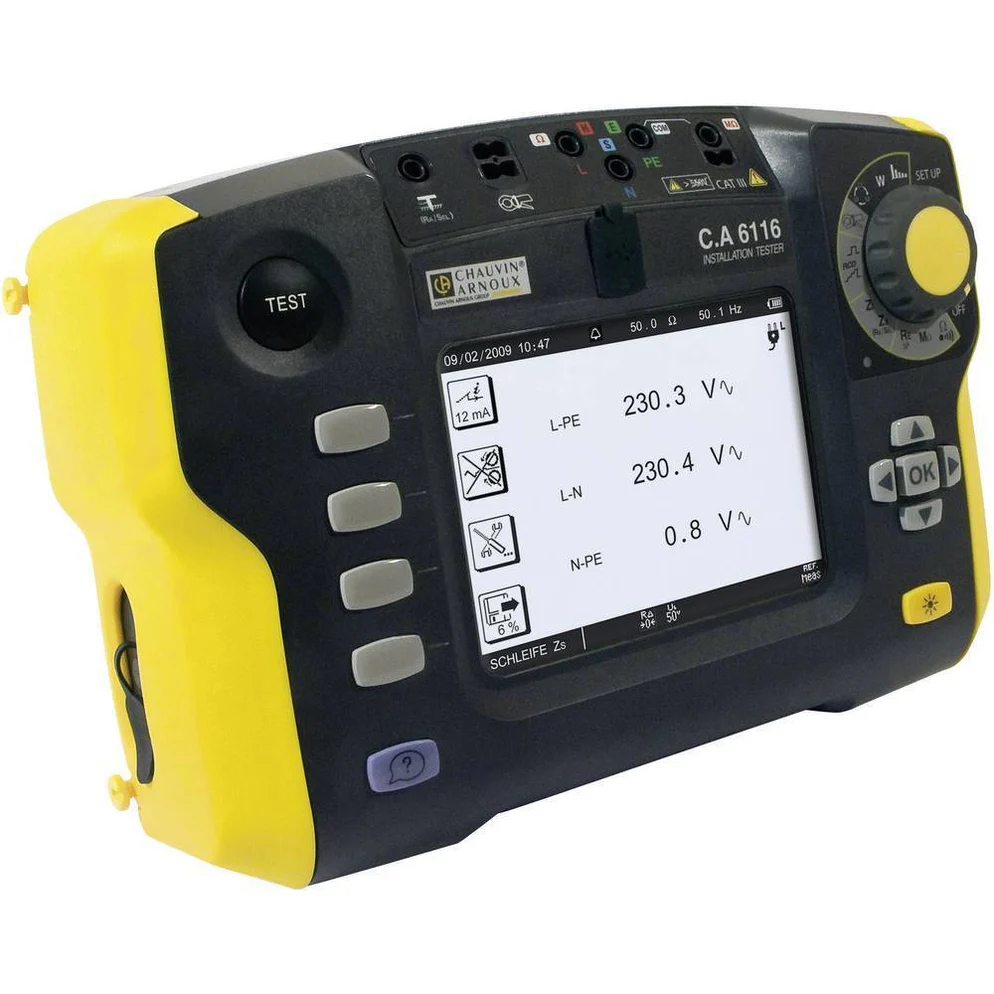

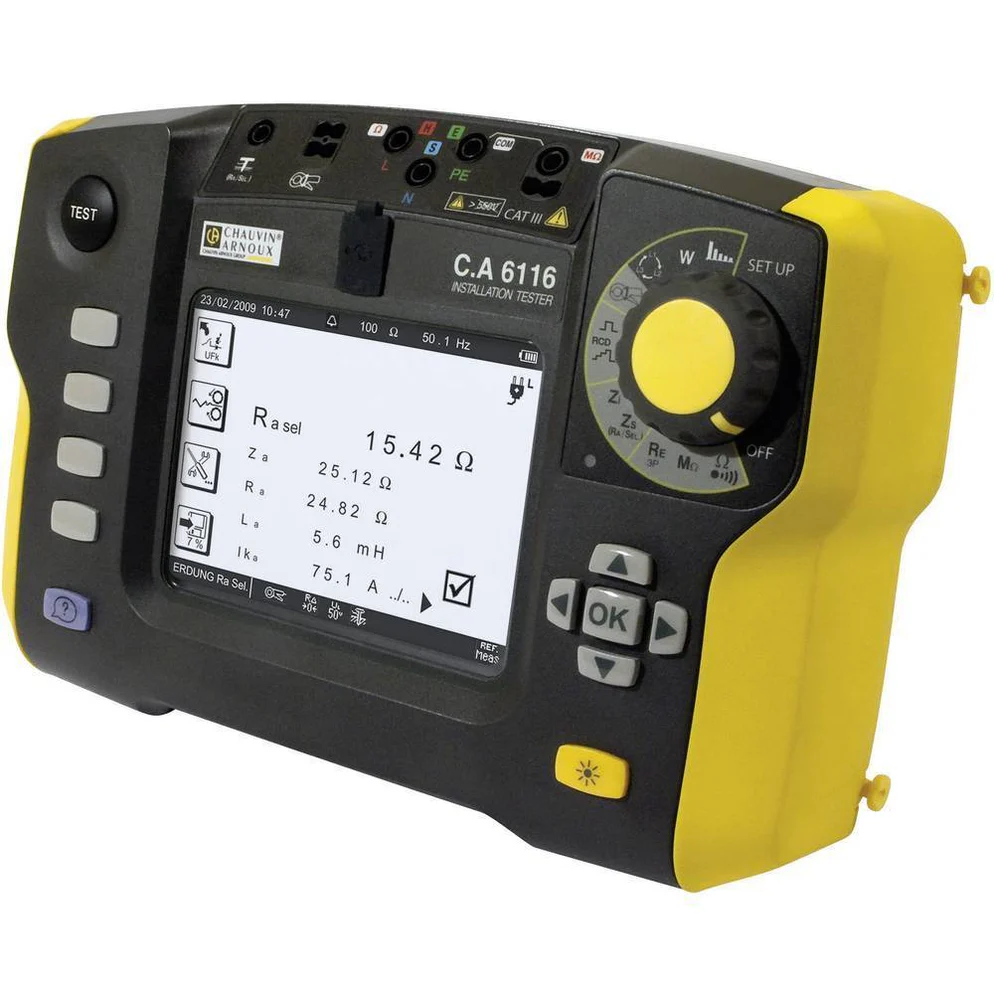

Key Features- Display: Features a large, high-definition backlit color LCD screen that shows measurement results and includes contextual help with connection diagrams for each function.
- User interface: A rotary switch and navigation keys provide direct and intuitive access to all functions.
- Data storage and transfer: Can store up to 1,000 tests internally and transfers data via a USB output.

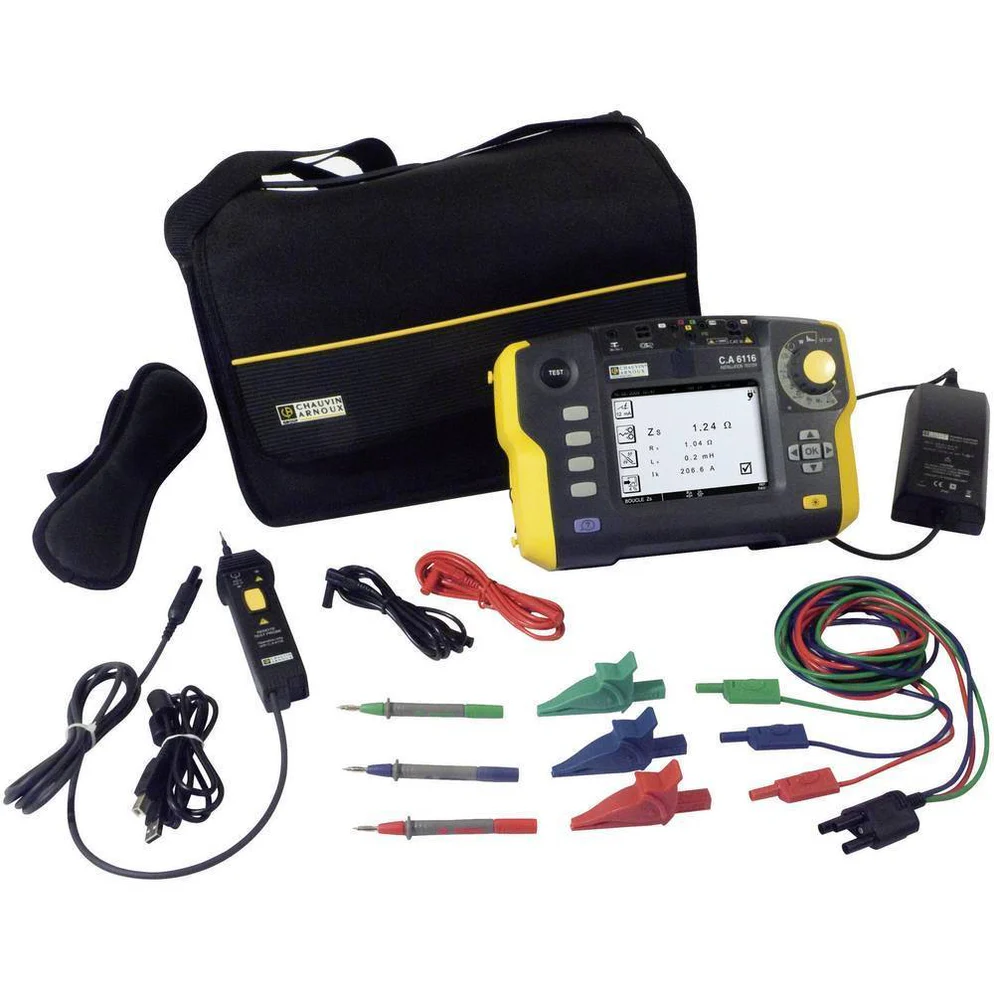

- Portability: The compact and rugged design includes a multi-point harness for hands-free operation.
- Insulation resistance: Measures insulation resistance up to 2 GΩ with test voltages of 50, 100, 250, 500, and 1,000 VDC.
- Continuity: Tests conductor continuity with a minimum current of 200 mA.
- Earth resistance: Performs 3-pole earth measurements.
- Loop impedance: Measures loop and line impedance with a resolution of 1 mΩ.
- RCD testing: Supports general purpose and selective testing for various RCD types, including AC, A, and F.
- Other measurements: Also measures voltage (AC/DC), frequency, active power, harmonics (up to the 50th order), and phase rotation.
|
