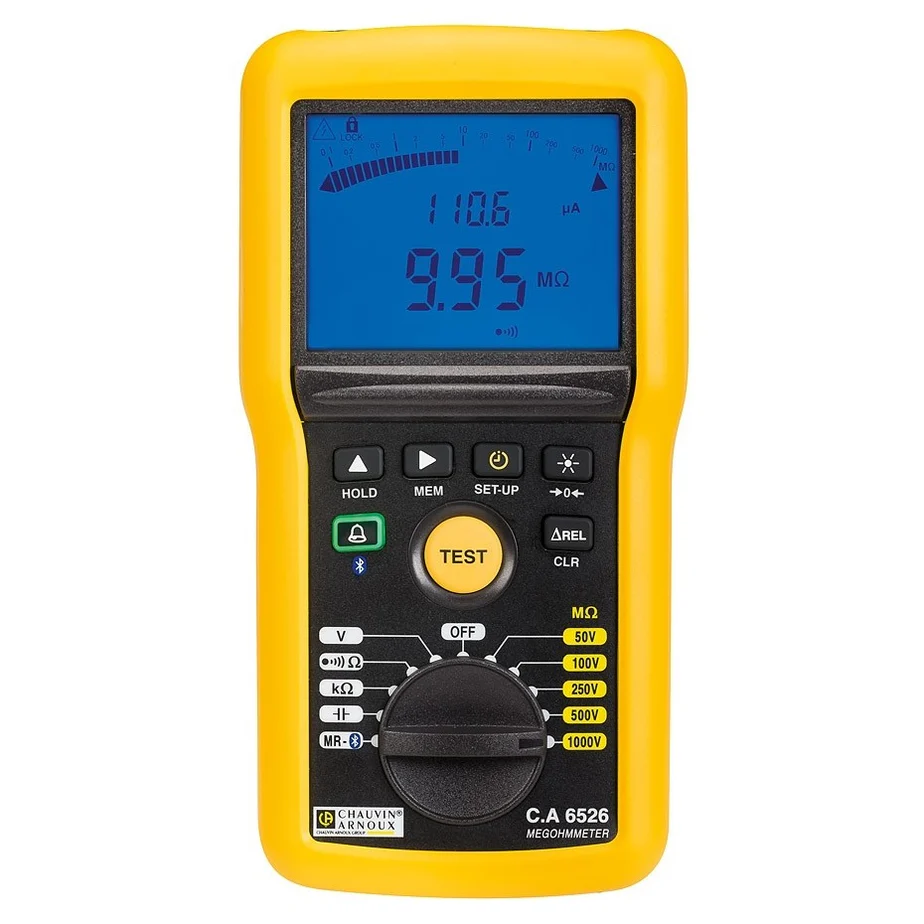

Key Features- Insulation testing: Offers five fixed test voltages: 50 V, 100 V, 250 V, 500 V, and 1 kV, with a measurement range up to 200 GΩ. It includes various insulation test modes, such as manual, lock, and timer-controlled duration testing.
- Insulation quality analysis: Automatically calculates Polarization Index (PI) and Dielectric Absorption Ratio (DAR) to help assess the quality of insulation and detect aging.
- Continuity testing: Features a low-resistance continuity test with a test current of 200 mA, which complies with the IEC 61557 standard. An additional 20 mA range is available to help prolong battery life.
- Additional functions: Includes DMM functions to measure voltage up to 700 V, frequency up to 800 Hz, resistance up to 999 kΩ, and capacitance up to 10 µF.
- Display: A backlit LCD screen displays dual 4,000-count readings along with a logarithmic bargraph, showing the measured value, actual test voltage, and test current simultaneously.
- Bluetooth communication: Allows for wireless data transfer to a PC for analysis and report generation using the included "Megohmmeter Transfer" software.
- Data storage: Stores up to 1,300 measurements in its internal memory.
- Robust design: Built with an IP54-rated, compact casing that is resistant to dust and splashing water. It also features a magnetic stand for hands-free use.
- Safety features: Rated 600 V CAT IV, meeting the IEC 61010-1 electrical safety standard. A green/red LED provides a clear Pass/Fail indication for testing.
- Ergonomics: Designed to be comfortable to hold, even with safety gloves, with an easily accessible test button and a remote-control probe with a built-in torch for working in poorly lit areas.
|
