Key Features- Insulation testing: Can test insulation resistance up to 4 TΩ (tera-ohms) with selectable DC test voltages of 50V, 100V, 250V, 500V, and 1,000V.
- Qualitative analysis: Automatically calculates the Polarization Index (PI) and Dielectric Absorption Ratio (DAR), providing insight into the quality and aging of electrical insulation.
- R(t) curve plotting: Can be programmed to perform tests over a specific period and plot the evolution of resistance over time.
- Data logging: An internal 128KB memory can store up to 1,500 test results, which can be organized by object and test for systematic record-keeping.
- Connectivity: Features a bi-directional RS232 output for communicating with a PC, allowing for data transfer and analysis using optional software.
- Other measurements: Also performs continuity measurements with a 200mA test current and cable compensation, and can measure resistance and capacitance. It automatically measures AC/DC voltage before and after a test.

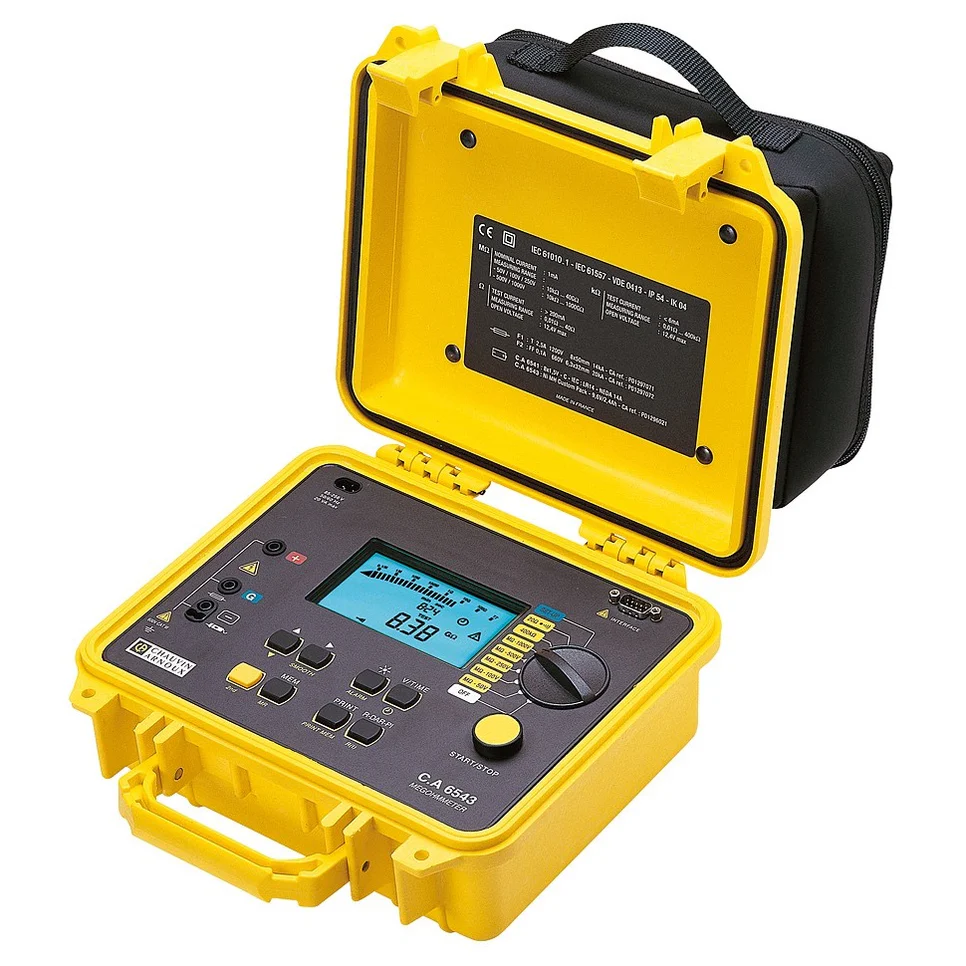

- Display: A large, backlit LCD screen features both a digital display and a bargraph.
- Power source: Equipped with a rechargeable NiMH battery and an integrated charger for extended field use.
- Durability and safety: Built into a tough, site-proof casing and has a safety rating of CAT III 600V.
|
