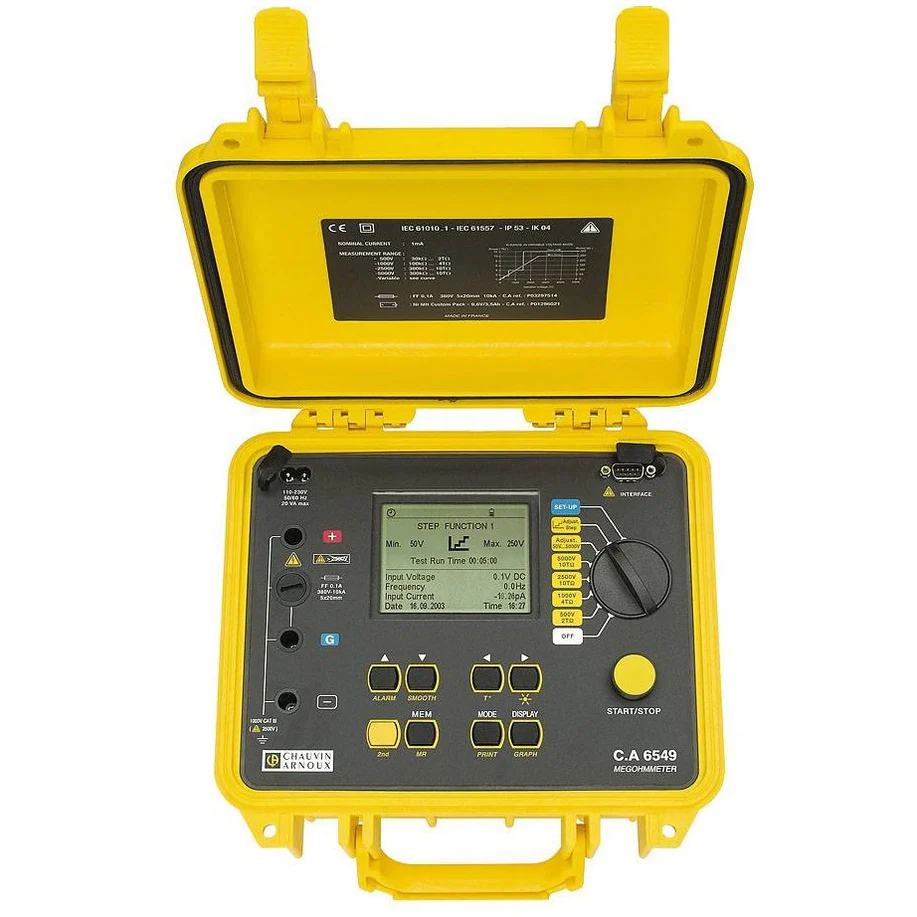

Chauvin Arnoux CA6549 Digital Insulation Tester, 5000V
Chauvin Arnoux CA6549 Digital Insulation Tester, 5000V
Chauvin Arnoux CA6549 Digital Insulation Tester, 5000V
Chauvin Arnoux CA6549 Digital Insulation Tester, 5000V

Chauvin Arnoux CA6549 Digital Insulation Tester, 5000V

Brand
Chauvin Arnoux

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

DescriptionThe Chauvin Arnoux CA6549 is a high-performance 5kV digital insulation tester designed for quantitative and qualitative analysis of insulation on ind
€3,660.00

🛡️ Buy with Confidence

  • Shipping: €30 flat rate across the EU
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: National Company for Industrial Equipment Marketing NCIEM UG (haftungsbeschränkt)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: European Union Only, Policies apply to purchases made on nciem.de
Description

The Chauvin Arnoux CA6549 is a high-performance 5kV digital insulation tester designed for quantitative and qualitative analysis of insulation on industrial equipment. It is particularly suited for high-voltage applications like testing cables, motors, generators, and transformers.

Key Features
  • Measurement range: It can test insulation resistance up to 10 TΩ, with a voltage measurement range of 40 to 5,100V.
  • Programmable test voltages: Features four preset test voltages: 500V, 1,000V, 2,500V, and 5,000V. The voltage can also be adjusted manually in increments of 10V or 100V.
  • Graphical display: The large, backlit graphic screen displays real-time graphs for insulation measurements, including the R(t) curve.
  • Polarization Index (PI): Calculates the ratio of the insulation resistance at 10 minutes to the resistance at 1 minute.
  • Dielectric Absorption Ratio (DAR): Calculates the ratio of the insulation resistance at 1 minute to the resistance at 30 seconds.
  • Dielectric Discharge (DD): Measures the residual current flowing from a multi-layer insulator after the voltage is removed.
  • Step Voltage Mode: Gradually increases the test voltage to assess insulation quality by observing the R(Utest) curve.
