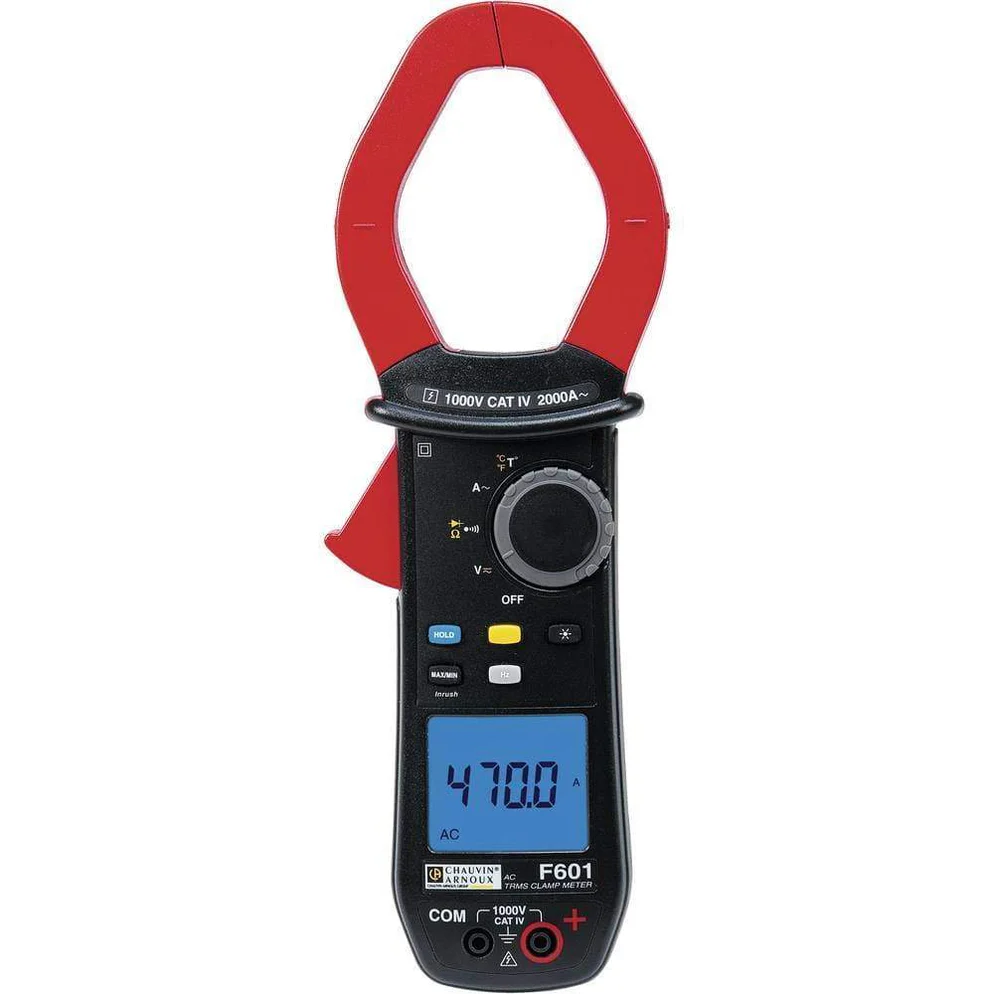

Key Features- Measurement functions: AC current, AC voltage, DC voltage, resistance, frequency, continuity with adjustable threshold, diode test, temperature with K-type thermocouple, and single- and three-phase power values.
- Display: Large, backlit LCD with a 10,000-count resolution.
- Response type: True RMS (AC) for accurate measurements of distorted waveforms.
- AC Current: Measures up to 2,000 A (3,000 A peak).
- AC Voltage: Measures up to 1,000 V (1,400 V peak).
- DC Voltage: Measures up to 1,400 V.
- Resistance: Measures up to 99.99 kΩ.
- Temperature (K type): Measures from -60 °C to +1,000 °C (-76 °F to +1,832 °F).
- Frequency: Up to 20 kHz for voltage and 1 kHz for current.
- Inrush Current: Measures true inrush (overcurrent) to capture motor startup spikes.
- Jaw capacity: 60 mm clamping diameter.
- Safety rating: CAT IV 1000V and CAT III 1000V, providing a high level of safety.
- Protection rating: IP54 dust and splash protection.
- Power supply: 4 x 1.5 V AA batteries.
- Dimensions/Weight: 111 x 296 x 41 mm / 640 g.
- Additional features: Min/Max recording, data hold, and auto-ranging.
|
