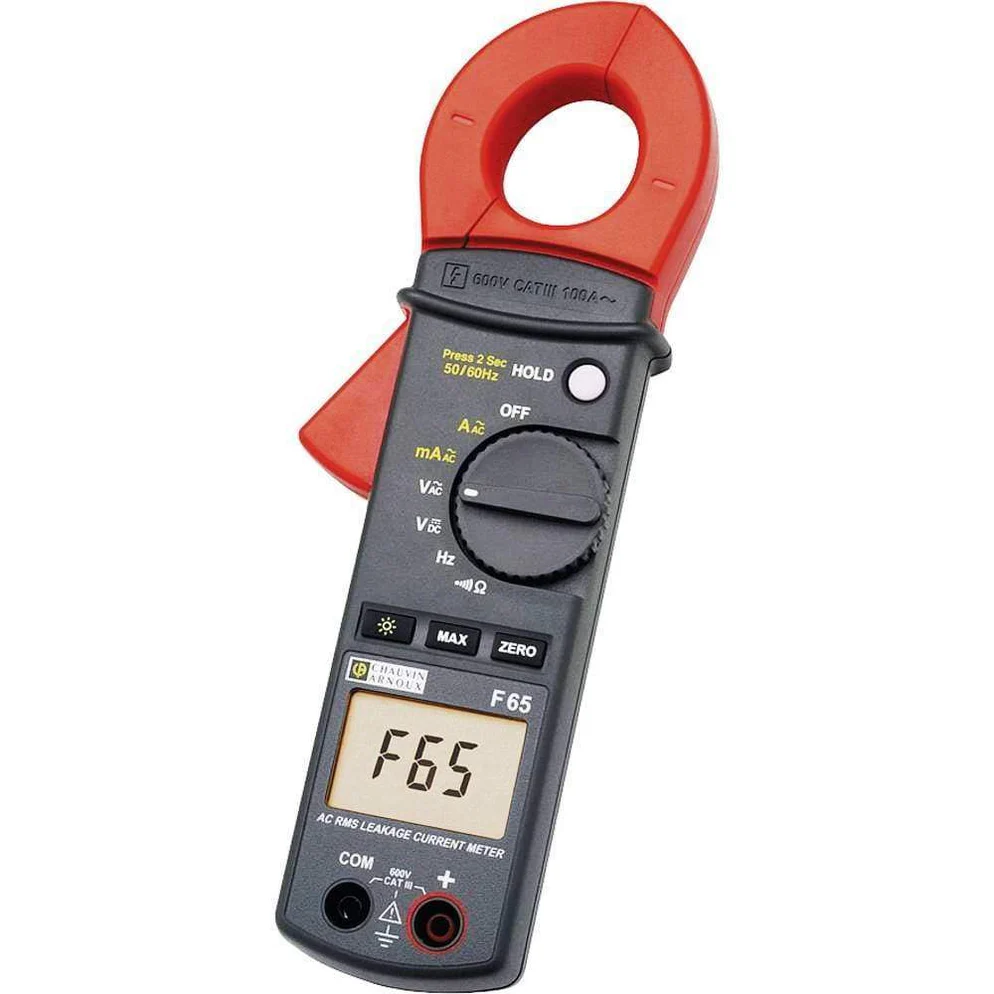

Chauvin Arnoux F65 True RMS AC Clampmeter
Chauvin Arnoux F65 True RMS AC Clampmeter
Chauvin Arnoux F65 True RMS AC Clampmeter
Chauvin Arnoux F65 True RMS AC Clampmeter

Chauvin Arnoux F65 True RMS AC Clampmeter

Brand
Chauvin Arnoux

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

DescriptionThe Chauvin Arnoux F65 is a True RMS AC clamp meter, designed specifically for measuring leakage currents. This makes it an ideal tool for detecting
€436.00

🛡️ Buy with Confidence

  • Shipping: €30 flat rate across the EU
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: National Company for Industrial Equipment Marketing NCIEM UG (haftungsbeschränkt)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: European Union Only, Policies apply to purchases made on nciem.de
Description

The Chauvin Arnoux F65 is a True RMS AC clamp meter, designed specifically for measuring leakage currents. This makes it an ideal tool for detecting insulation faults and identifying the cause of inadvertent RCD tripping. In addition to its leakage current capabilities, it also includes the functions of a standard multimeter.

Key Features
  • Response type: True RMS (AC) for accurate measurements on distorted signals.
  • Display: 10,000-count backlit LCD.
  • AC Current: Measures from 30 µA to 100 A with a resolution of 10 µA.
  • Voltage: Measures AC/DC voltage up to 600 V.
  • Resistance: Measures up to 1 kΩ.
  • Frequency: Measures from 5 Hz to 1 kHz.
  • Jaw capacity: 28 mm, suitable for smaller to medium-sized cables.
  • Immunity: High immunity to eddy currents, with a rating of 70 dB, to minimize interference from adjacent conductors.
  • Filter: Includes a 50/60 Hz anti-harmonic filter for enhanced fault detection in disturbed power systems.
  • Functions: Features include Max, Relative, Hold, and auto power-off.
  • Safety rating: CAT III 300 V, compliant with EN 61010 standards.
  • Protection rating: IP30 as per NF EN 60529.
  • Power supply: 2 x 1.5 V AAA/LR3 batteries.
  • Dimensions/Weight: 218 x 64 x 30 mm / 280 g (with batteries).
Download Data Sheet
