Key Features- Measurement capabilities: The PEL113 measures AC and DC voltage up to 1000V and current up to 10 kA AC or 5 kA DC, depending on the sensors used. It provides measurements for active, reactive, and apparent power and energy values, as well as harmonic analysis up to the 50th order. It also calculates power factor, crest factor, and THD (Total Harmonic Distortion).

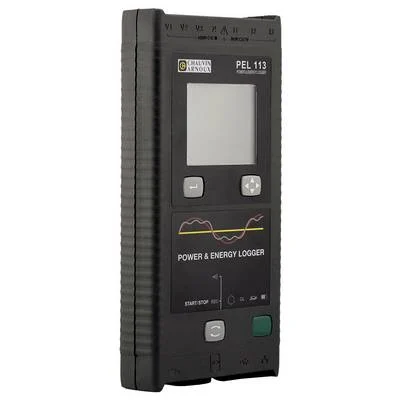

- Easy installation: The device is self-powered via the voltage phase and can be installed without interrupting the mains supply. Its magnetic casing allows for convenient mounting inside electrical cabinets.
- Long-term recording: The PEL113 is suitable for long-term recording and analysis, using an SD card for memory storage. This allows for recording energy consumption over extended periods, which is useful for energy efficiency projects.
- Connectivity and software: It offers multiple communication options, including USB, Ethernet, and Wi-Fi. The included PEL Transfer software is used for instrument configuration, data viewing and download, and data export. An Android application is also available for monitoring measurements in real-time.
- Alarm functionality: The logger has a built-in, customizable alarm feature. When connected via the IRD server, an email notification can be sent to the user if an alarm is triggered.

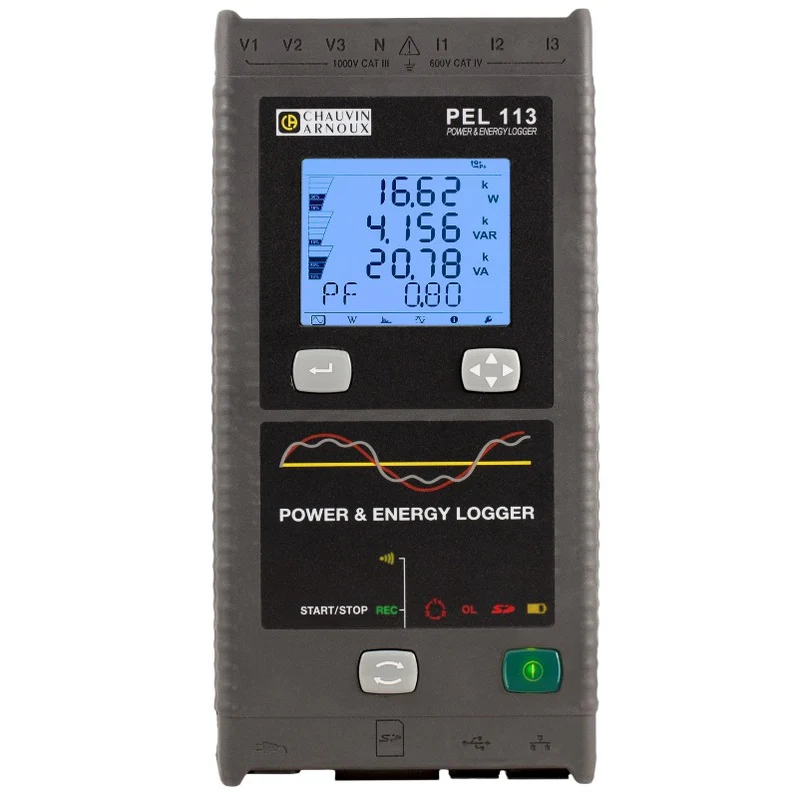

- User display: It is equipped with a quadruple, backlit digital LCD display.
|
