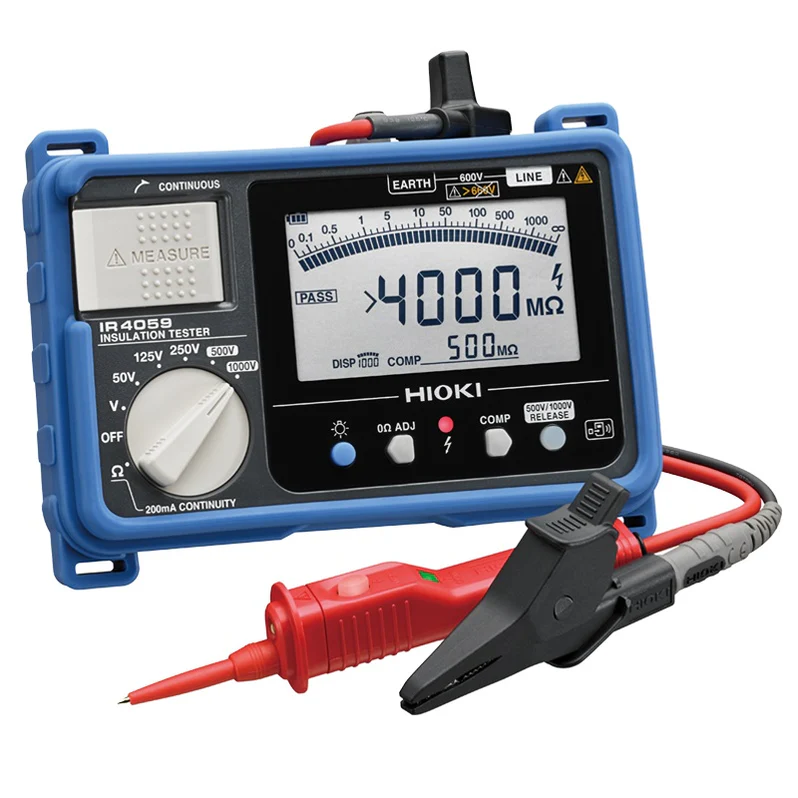

The Hioki IR4059 Insulation Resistance Tester is a Bluetooth® compatible insulation resistance tester. It has a 5-range, 50V to 1000V digital insulation resistance tester with a bar graph and delivers efficient functions and features to help shorten the work time associated with field insulation testing.
● Best for measuring the insulation resistance of electric vehicles: The IR4059 is the ideal insulation resistance tester for a technician to use when checking the insulation resistance of an electric car, thanks to its safety features, reliable performance, and user-friendly design.
KEY FEATURES
● 5-range testing voltage of 50V/100MΩ to 1000V/4000MΩ and Digital bar graph
● Stable and high-speed digital readings; 0.3 second response time for PASS/FAIL judgment
● Built-in AC/DC voltage meter, useful for testing solar power generation systems and electric vehicles
● Bright LED, luminous LCD, test lead (included accessory: L9788-10) with bright LED lamp to illuminate near-hand
● Multi-functional test lead with remote switch improves work efficiency: flashlight, remote test start, LED light for PASS/FAIL notification
● Continuity check via 200mA testing
● Drop-proof onto concrete from 1m (3.28 feet)
● Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
