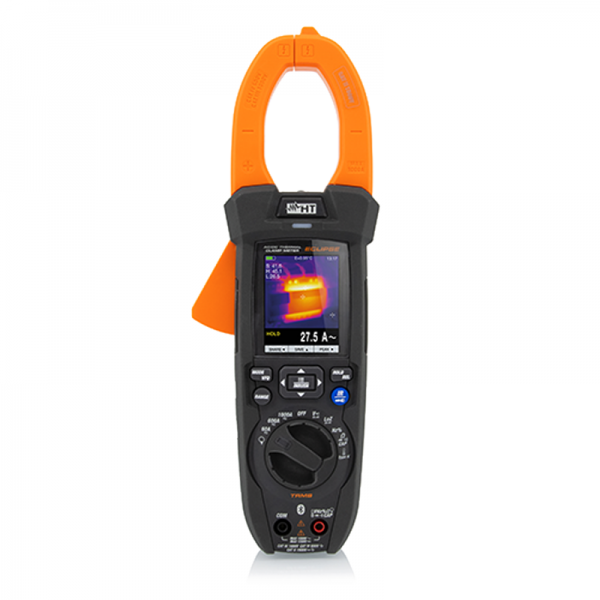

Key Features- Integrated thermal imager: The standout feature is a built-in 80x80 pixel IR camera for thermal scanning. It has a temperature range of -4°F to 500°F and can capture up to 128 thermal images.
- High-voltage measurements: It is designed to measure AC current up to 1000A, DC voltage up to 1500V, and AC voltage up to 1000V. The high DC voltage capacity makes it suitable for photovoltaic installations.
- True RMS measurements: The meter uses True RMS technology to provide accurate readings on both sinusoidal and non-sinusoidal AC waveforms.
- Connectivity and data logging: The ECLIPSE has Bluetooth connectivity to transfer snapshots and recorded data to mobile devices using the HTMercury app. It can also log data for up to 34 hours.
- Additional functions: In addition to current and voltage, the meter measures resistance, frequency, capacitance, and temperature with an external K-type probe.
- Safety rating: It is rated for safety standard IEC/EN61010-1 with CAT IV 600V and CAT III 1000V protection.
- Display: The device has a color TFT display with a 6000-count resolution, backlight, and bargraph for visibility in poorly lit areas.
- Physical specs: According to tEquipment.net, the ECLIPSE can handle a maximum conductor size of 40mm (1.57 inches).
|
