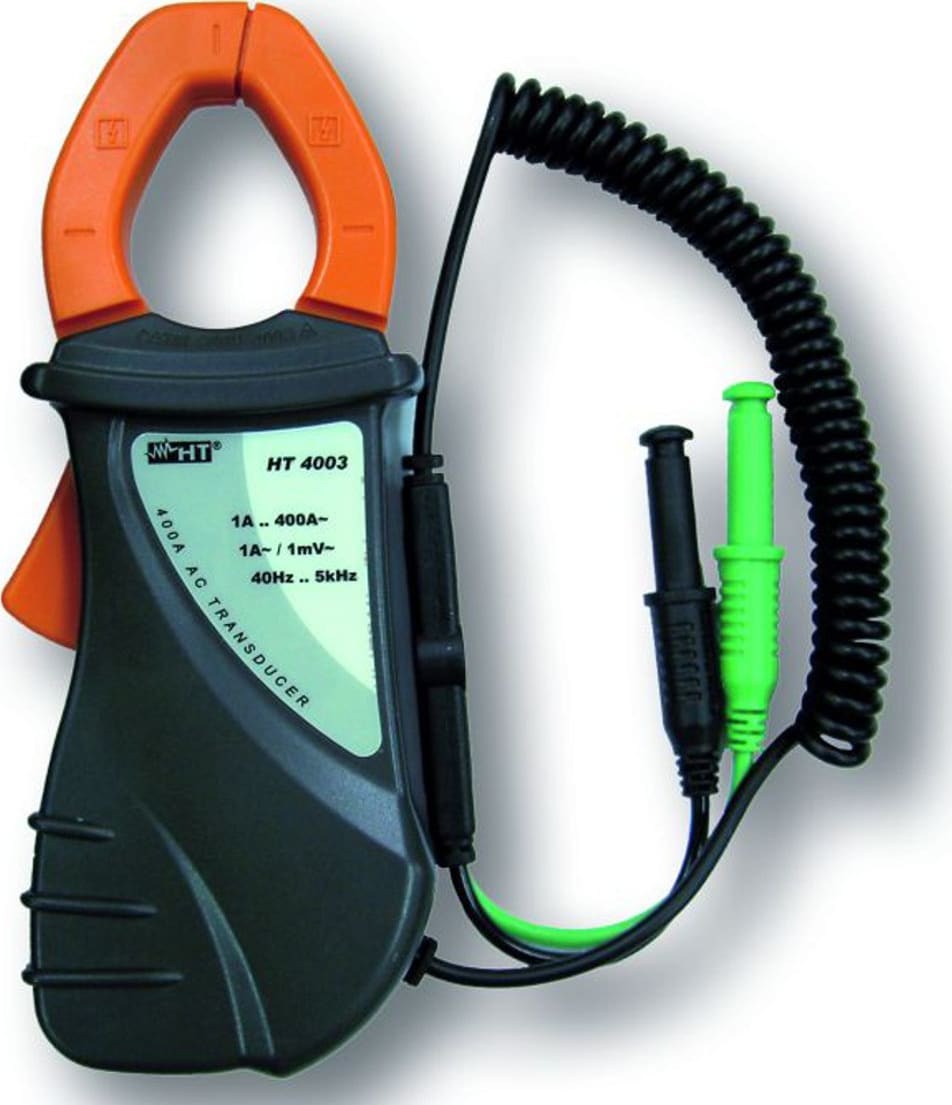

Key Features- Transducer clamp: The HT4003 functions as a transducer, which means it converts the measured current into a proportional voltage signal. This allows for a wider range of applications than a simple clamp meter.
- Output compatibility: The voltage output with banana connectors makes it compatible with any multimeter, data logger, or other device that can accept a voltage signal through standard banana jacks.
- Safety: With a CAT III 600V safety rating, the HT4003 is rated for use in most fixed installation environments, such as distribution panels, feeders, and short-circuit protection devices.
- Measurement range: 1A to 400A AC
- Output signal: 400mV AC
- Output ratio: 1A / 1mV
- Basic accuracy: ±1.5% of reading + 0.5A
- Safety rating: CAT III 600V, compliant with IEC/EN61010-1
- Maximum cable diameter: 30mm (1.18 inches)
- Output connector: 2 x 4mm safety banana leads
- Frequency range: 40Hz to 5kHz
- Working temperature: -10°C to +50°C
- Dimensions (L x W x H): 195mm x 64mm x 30mm
- Weight: 300g
|
