HT Instruments HT4022 TRMS AC Clamp Meter
HT Instruments HT4022 TRMS AC Clamp Meter
HT Instruments HT4022 TRMS AC Clamp Meter
HT Instruments HT4022 TRMS AC Clamp Meter

HT Instruments HT4022 TRMS AC Clamp Meter

Brand
HT-INSTRUMENTS

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

DescriptionThe HT Instruments HT4022 is a professional TRMS (True Root Mean Square) AC clamp meter designed for industrial environments to troubleshoot issues w
€565.00

🛡️ Buy with Confidence

  • Shipping: €30 flat rate across the EU
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: National Company for Industrial Equipment Marketing NCIEM UG (haftungsbeschränkt)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: European Union Only, Policies apply to purchases made on nciem.de
Description

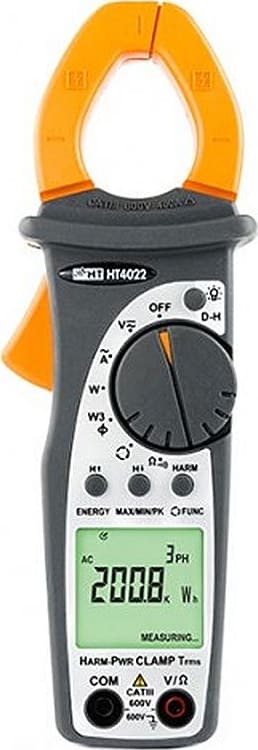

The HT Instruments HT4022 is a professional TRMS (True Root Mean Square) AC clamp meter designed for industrial environments to troubleshoot issues with non-linear loads and frequency-driven motors. In addition to standard AC current and AC/DC voltage measurements, the HT4022 can also measure power, energy, power factor, and harmonics.

Key Features
  • Comprehensive measurement capabilities: Measures AC current up to 400A, AC/DC voltage up to 600V, resistance, continuity, and frequency.
  • Power and harmonics analysis: Capable of measuring active, reactive, and apparent power, power factor, and energy in both single-phase and balanced three-phase systems. It can also calculate harmonic voltage and current components up to the 25th harmonic, including Total Harmonic Distortion (THD%).
  • Phase sequence detection: Uses an innovative, patented one-wire method to detect phase rotation.
  • Patented test lead holster: A rubber cap can be attached to the clamp jaws to hold one of the test leads, allowing for easier one-handed measurements.
  • Convenient and safe display: Features a large, 4-digit (10,000 counts) LCD screen with a backlight for easy readability in poor lighting conditions. The instrument is rated CAT III 600V for safety.
  • Additional functions: Includes data hold, maximum/minimum/average readings, peak (1ms), low battery indication, and an auto power-off function.
Download Data Sheet
