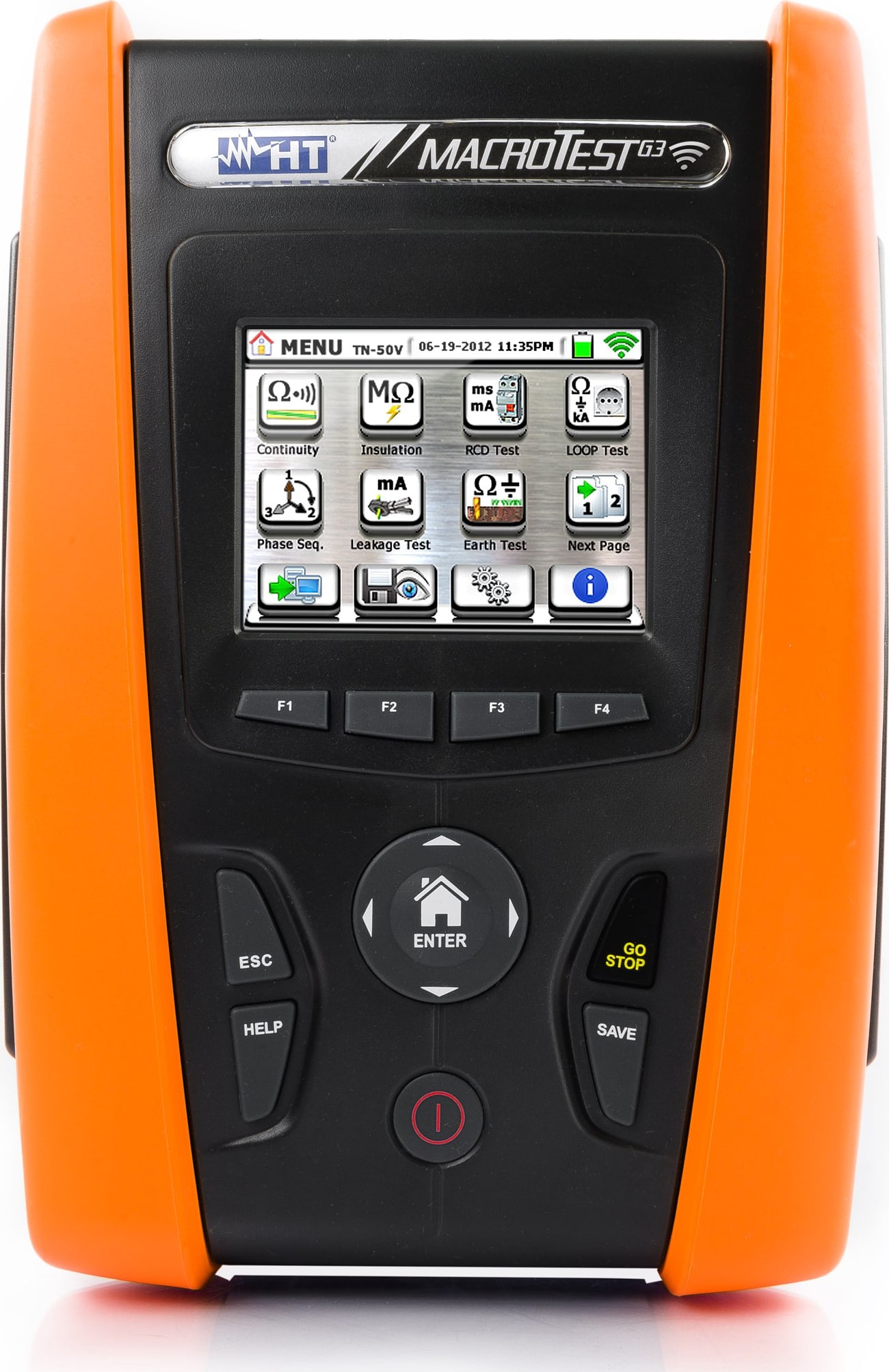

HT Instruments MACROTESTG3 Multifunction Tester
HT Instruments MACROTESTG3 Multifunction Tester
HT Instruments MACROTESTG3 Multifunction Tester
HT Instruments MACROTESTG3 Multifunction Tester

HT Instruments MACROTESTG3 Multifunction Tester

Brand
HT-INSTRUMENTS

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

DescriptionThe HT Instruments MACROTESTG3 is a multi-function electrical safety tester, but it does not have a built-in HiPot testing function. A Hipot test is
€3,370.00

🛡️ Buy with Confidence

  • Shipping: €30 flat rate across the EU
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: National Company for Industrial Equipment Marketing NCIEM UG (haftungsbeschränkt)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: European Union Only, Policies apply to purchases made on nciem.de
Description

The HT Instruments MACROTESTG3 is a multi-function electrical safety tester, but it does not have a built-in HiPot testing function. A Hipot test is a high-potential test that applies a much higher voltage than the insulation rating to check for breakdown. The MACROTESTG3 performs insulation resistance tests, which apply up to 1000V DC, not the higher voltages required for a true HiPot test.

Key Features
  • Continuity: Test of protective conductors with 200mA.
  • Insulation resistance: Tests with 50V, 100V, 250V, 500V, and 1000V DC.
  • Earth resistance: Using voltammetric (2- or 3-pole) and clamp methods. It also measures soil resistivity.
  • RCD (Residual Current Device) testing: For types A, AC, B, B+, and F, including general, selective, and delayed up to 1A.
  • Loop/fault impedance: Measures impedance to calculate prospective short-circuit current. A high-resolution version is possible with the optional IMP57 accessory.
  • Electrical parameter analysis: Measures voltage (V), current (A), power (W, VAR, VA), power factor (PF), and harmonics.
  • Phase sequence indication: Checks the sequence of phases.
  • Leakage current:Measures with the optional HT96U clamp.
  • Environmental parameters: Measures temperature, humidity, and illuminance with optional external probes.
Download Data Sheet
