HT Instruments MERCURY TRMS DMM Multimeter w/IR Camera, 1000VDC, 10A Resistance

Description

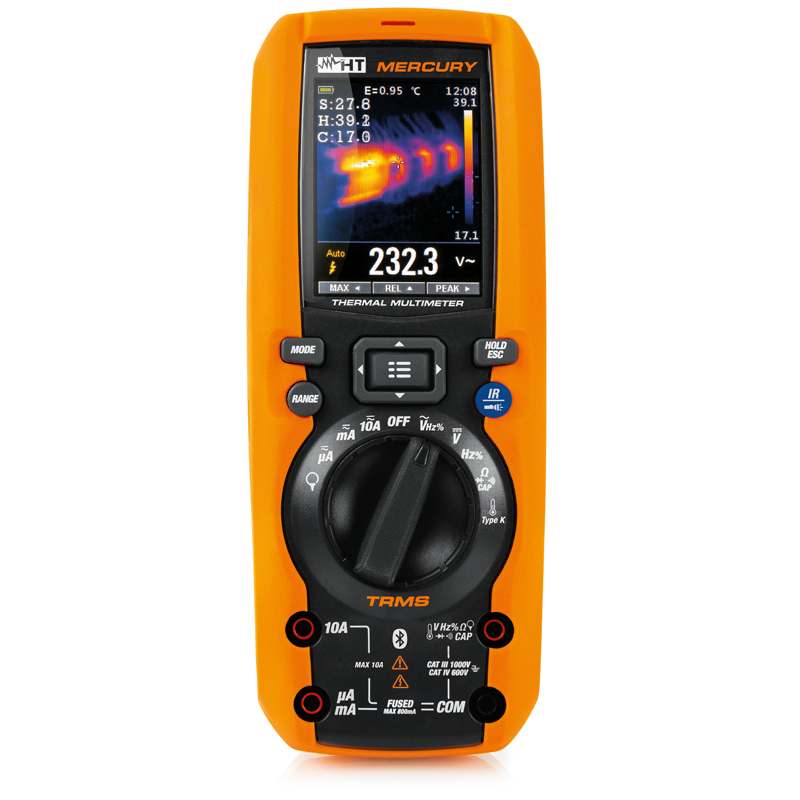

The MERCURY HT Instruments Multimeter with Infrared Camera is a professional-grade, True RMS (TRMS) digital multimeter with a built-in 80 x 80 pixel thermal imaging camera. It's designed for electrical technicians and professionals who need advanced diagnostic capabilities in a single, robust device.

Key Features

• Built-in thermal imaging camera: The 80 x 80 pixel infrared camera allows for contactless temperature measurement from -20°C to 260°C and can automatically detect hot and cold spots.
• Data logging: The multimeter includes a data logger function to save measurements and display the results as a graph.
• AC+DC mode: This feature measures signals with both AC and DC components.
• Included flexible clamp: The device comes with an F3000U flexible current clamp for measuring AC current up to 3000A.
• Comprehensive measurements: It measures AC/DC voltage up to 1000V, AC/DC current up to 10A, as well as resistance, continuity, frequency, capacitance, and temperature (with a K-type probe).
• High safety rating: The instrument has a CAT IV 600V or CAT III 1000V safety rating and an IP65 protection class for dust and splash resistance.
• Rugged construction: It is housed in a shock and break-resistant casing with rubber grips.
• Connectivity: Bluetooth allows the multimeter to connect with mobile devices via the HTMercury app for creating and sharing reports.
• High-contrast color display:A 320 x 240 pixel TFT display is included.
