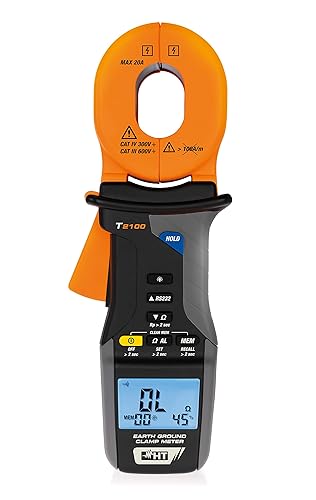

Key Features- Measurement principle: The clamp's two jaws function independently. One jaw generates a voltage on the earth loop, and the other measures the resulting current. The meter then calculates the earth resistance based on these two values.
- True RMS measurement: The T2100 performs True Root Mean Square (TRMS) measurements, which provides a more reliable reading for distorted, non-sinusoidal waveforms that can occur in industrial electrical systems.
- RS-232 interface: An integrated RS-232 port allows the meter to connect to other HT Instruments devices, such as the MACROTESTG3, MACROEVTEST, and GSC60. This enables data transfer for saving and reporting test results on a PC.
- Data logging: The device includes an internal memory with storage capacity for up to 99 measurement values.
- User convenience: The T2100 features a large, backlit LCD display with a bargraph for easy readings in different environments. It also includes an automatic shut-off function after five minutes of inactivity and a data hold function.
- Safety and durability: The instrument is compliant with IEC/EN61010-1 standards and rated for CAT III 600V and CAT IV 300V measurements, though different vendors list varying CAT ratings, so check the specifications carefully. It has a robust protective case.
|
