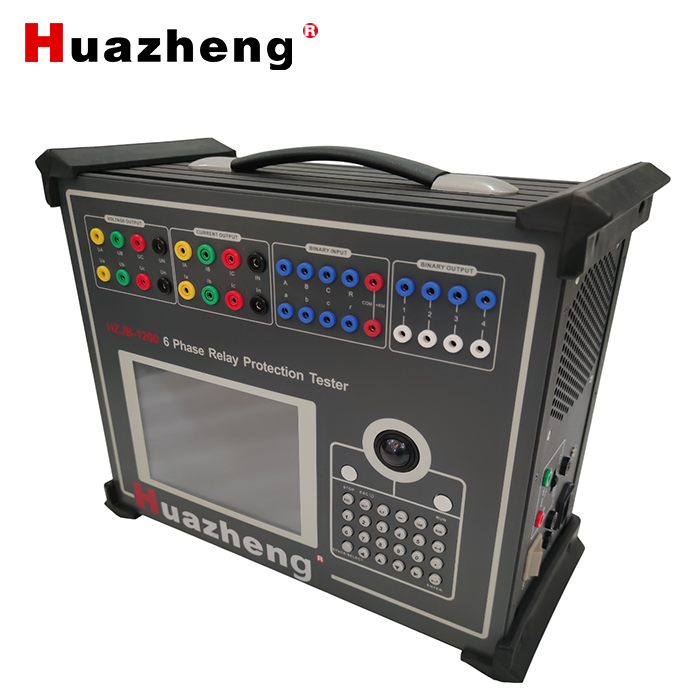

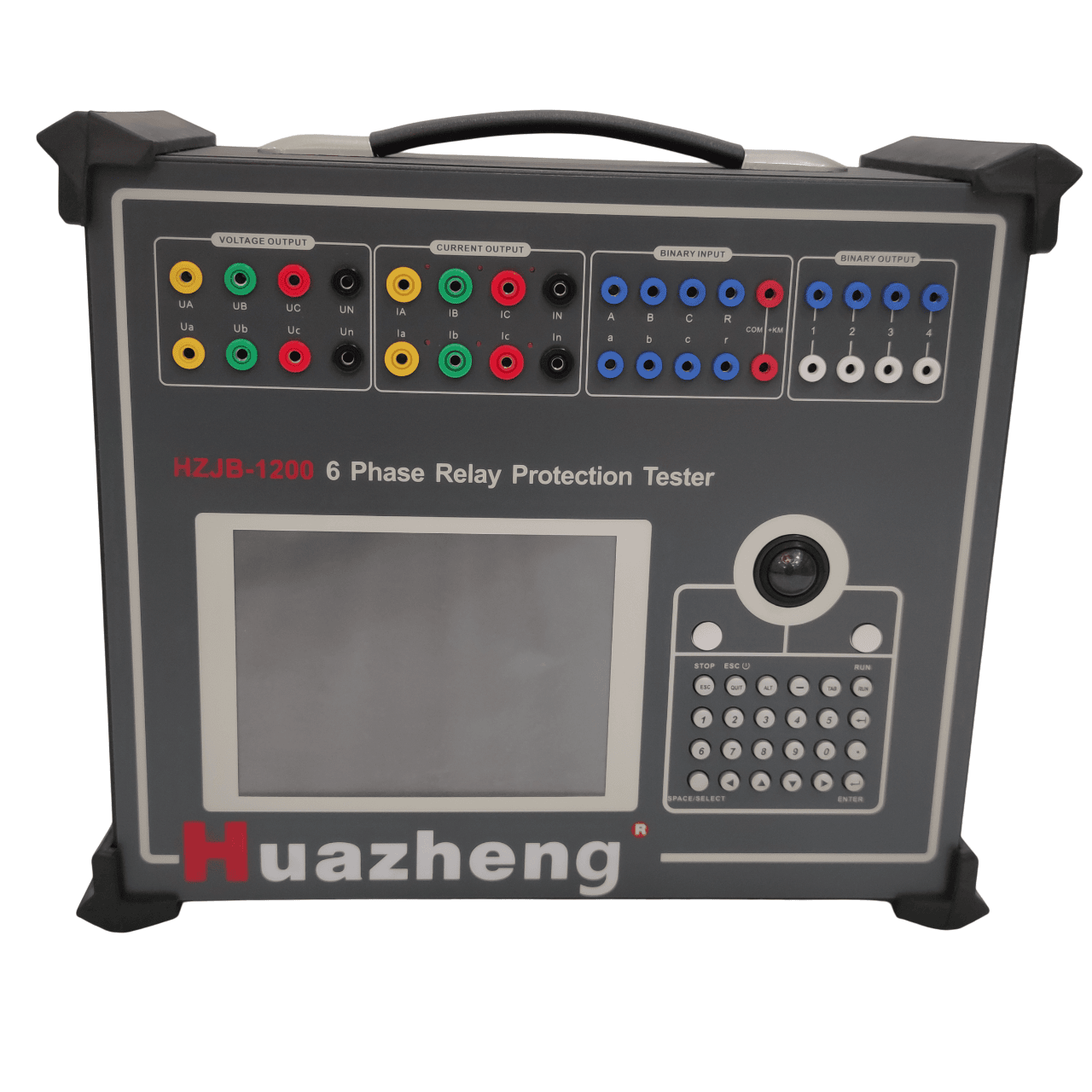

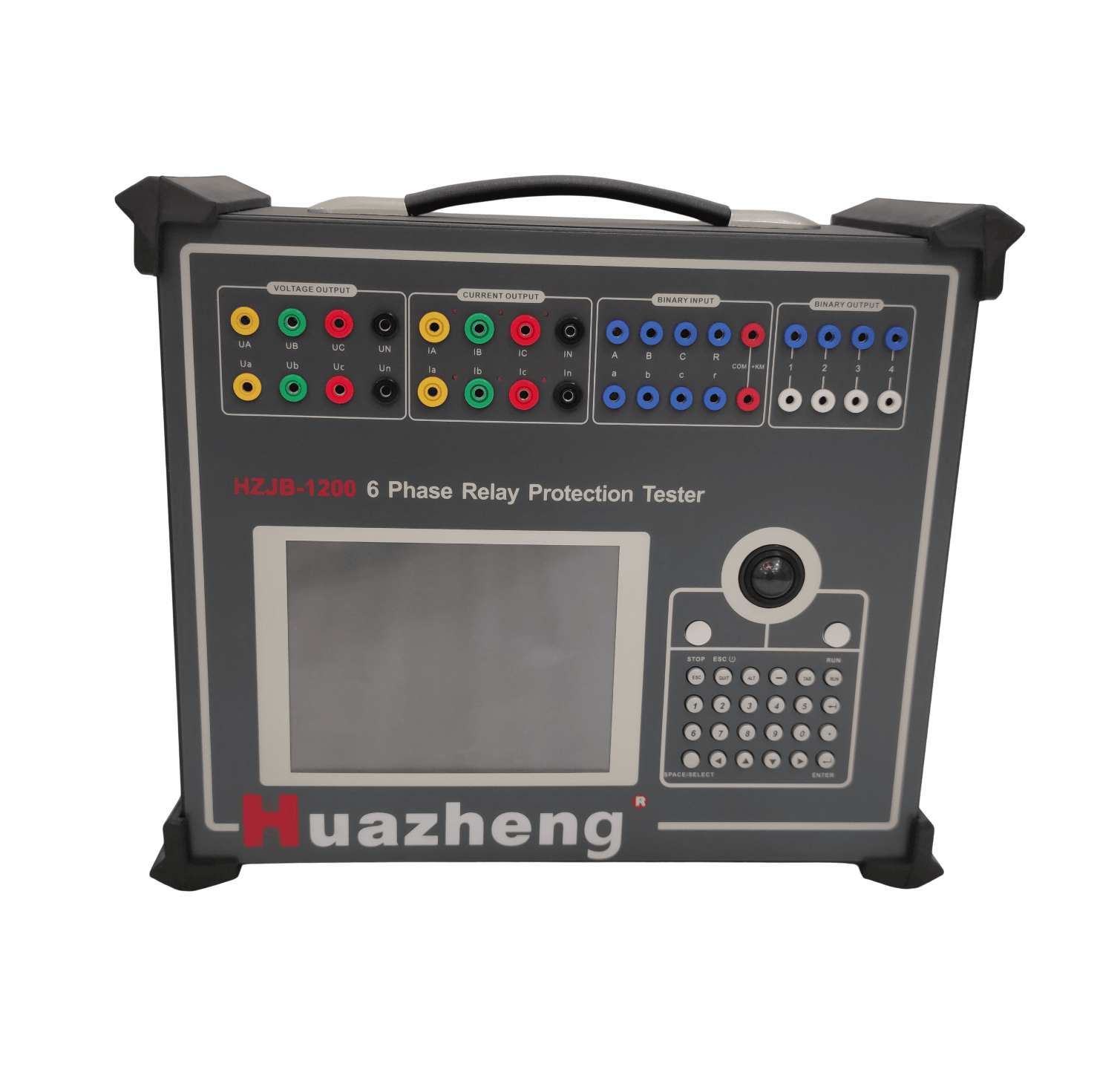

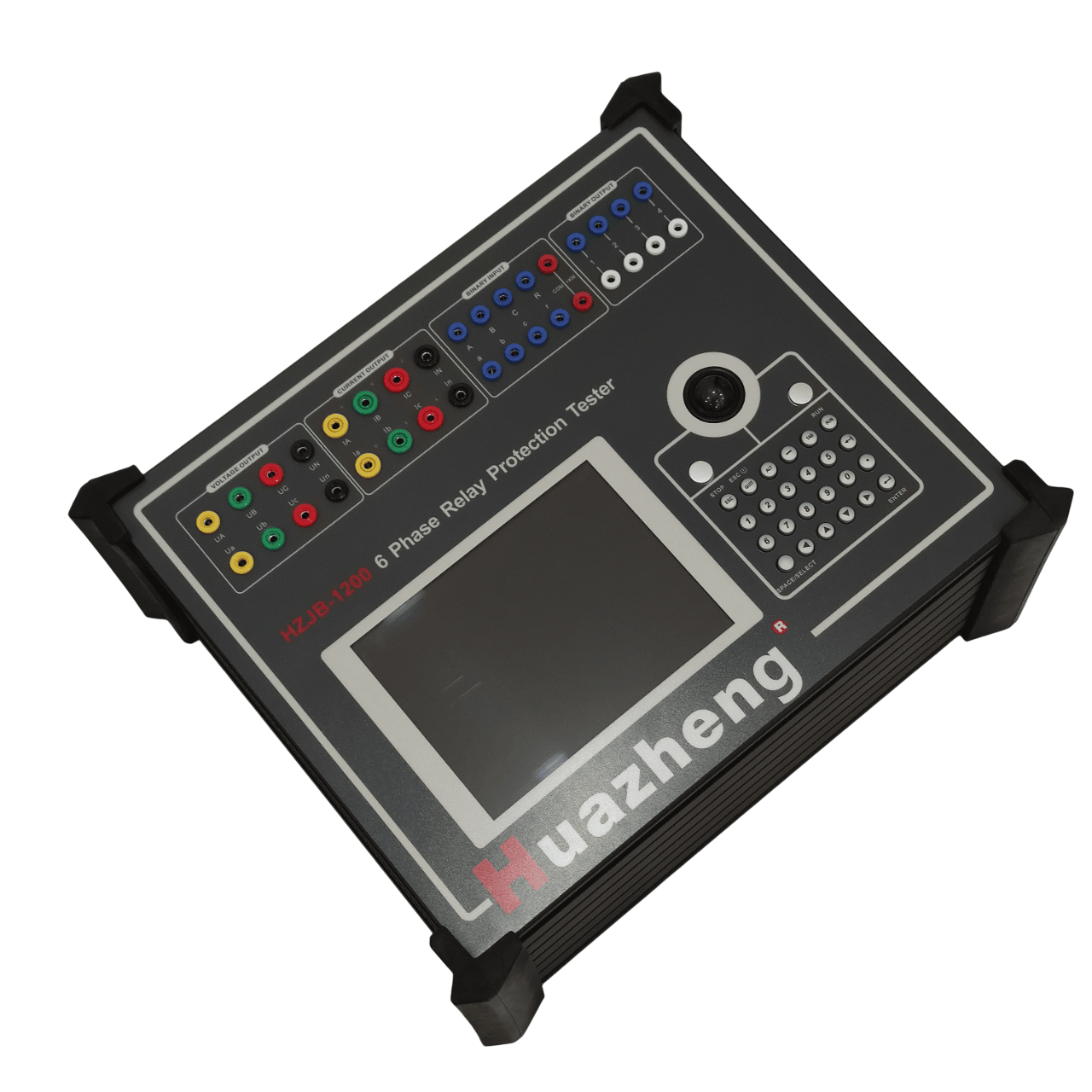

Huazheng HZJB-1200 Six Phase Relay Tester

Description:
Relay protection microcomputer test device plays a key role in operating electricity power systems reliably and safely. It is the testing device used in professional field of microcomputer protection, relay protection, excitation measurement, fault recorder.

Features:
HZJD-6 Six-phase current with a stdard six-phase voltage while the output can meet all the test requirements of the site.
Various technical indicators fully meet the Ministry issued a DL / T624-1997 "microprocessor-based relay protection test device technology" standards.
Stand-alone independent operation, built-in high-performance IPC clocked 500MHz, memory 512M, hard drive 16G, running Windows XP operating system. And selection of 8.4-inch with a resolution of 800 × 600 TFT display, making the overall operation easy stand-alone freely, durable.
Control board using DSP + FPGA structure, 16 DAC output to the fundamental point can produce a weekly high density sine 2000, has greatly improved the quality of the waveform to improve the accuracy of the tester.
Linear power amplifier using high-fidelity amplifier, both to ensure the accuracy of small current, but also to ensure the stability of a large current.
