HZ4241 Three Phase Protection Relay Test Kit
HZ4241 Three Phase Protection Relay Test Kit
HZ4241 Three Phase Protection Relay Test Kit
HZ4241 Three Phase Protection Relay Test Kit
HZ4241 Three Phase Protection Relay Test Kit
HZ4241 Three Phase Protection Relay Test Kit
HZ4241 Three Phase Protection Relay Test Kit
HZ4241 Three Phase Protection Relay Test Kit

HZ4241 Three Phase Protection Relay Test Kit

Brand
Huazheng

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

Description:HZ4241 Three Phase Protection Relay Test Kit HZ4241 is a new small microcomputer relay protection testing instrument, manufactured referencing DL/T6
€6,362.00

🛡️ Buy with Confidence

  • Shipping: €30 flat rate across the EU
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: National Company for Industrial Equipment Marketing NCIEM UG (haftungsbeschränkt)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: European Union Only, Policies apply to purchases made on nciem.de

Description:

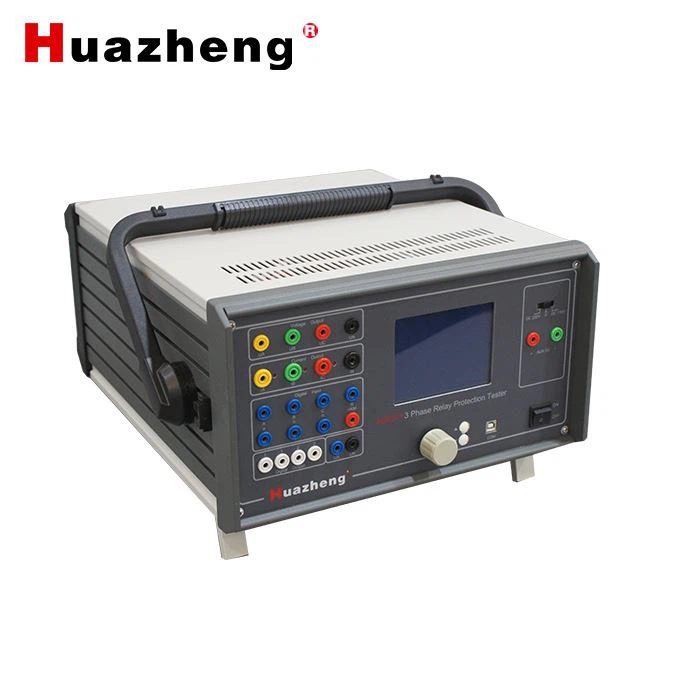

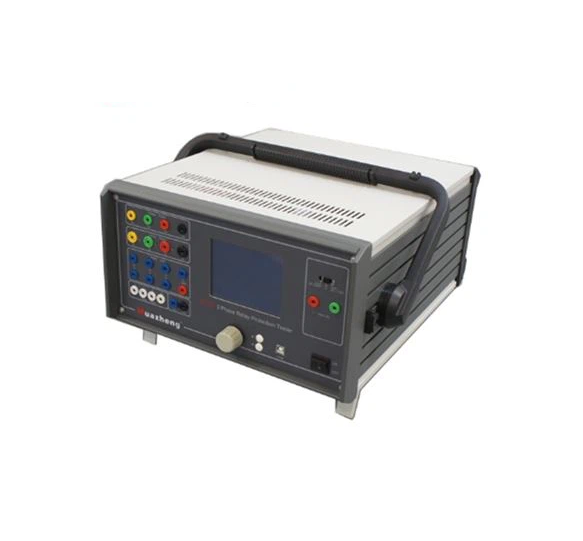

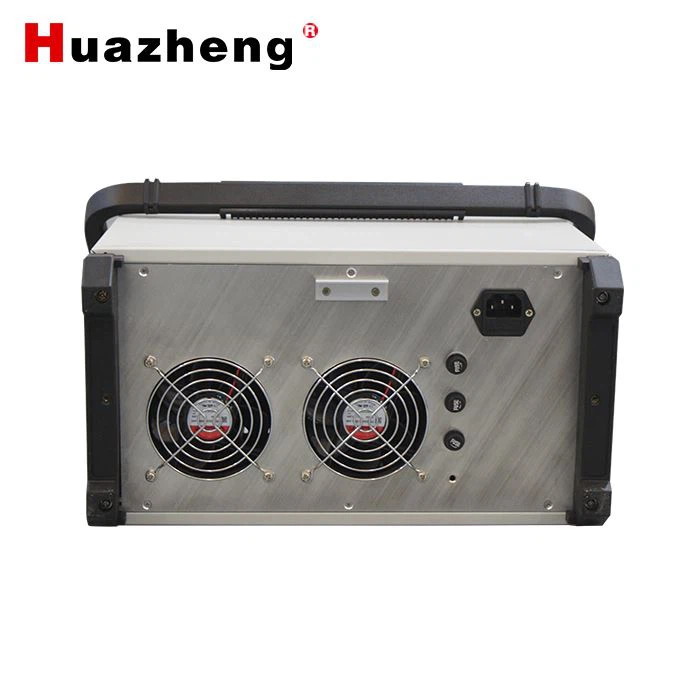

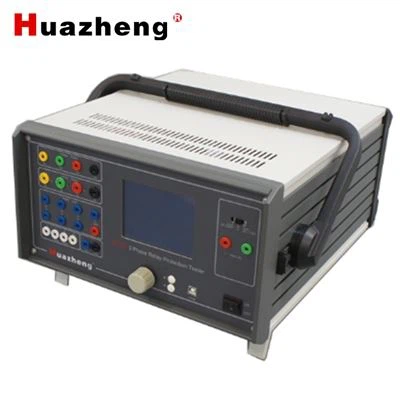

HZ4241 Three Phase Protection Relay Test Kit HZ4241 is a new small microcomputer relay protection testing instrument, manufactured referencing DL/T624-199 "microcomputer relay protection test device technology", listening to the views of users, summarizing the advantages and disadvantages of the same domestic products, using modern advanced microelectronic technology and device.

Specification
AC current output
Phase current output (effective value) 0~40A, Output Precision 0.2 degree
3 phase parallel current output (effective value) 0~120A
A Long-time Phase current 10A
Maximum output power of Phase current 450VA
Maximum output power of 3 parallel current 900VA
Maximum Permitted work time of 3 parallel current 10S
Frequency range ( fundamental) 20~1000Hz
Harmonic time 2~20


Download Data Sheet
