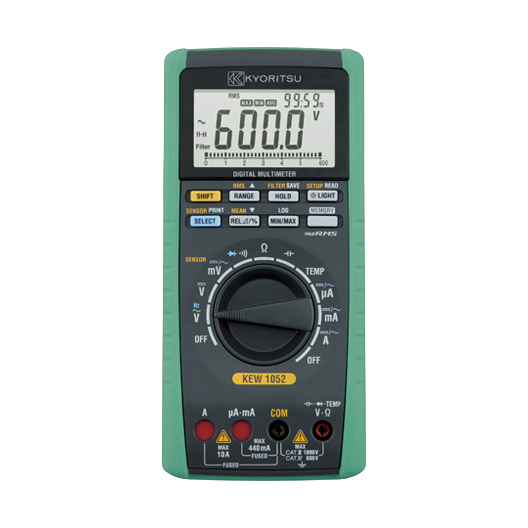

Kyoritsu 1052 Mean/RMS Switch Multimeter

Description

The Kyoritsu KEW 1052 is a high-accuracy, True-RMS digital multimeter known for its reliable measurements and robust safety features. Designed for industrial use, it can measure voltage, current, resistance, capacitance, frequency, and temperature.

Key Features

• High accuracy: The multimeter features a 0.09% basic DC accuracy for precise readings.
• True-RMS measurement: It can measure and display the true root-mean-square value of both AC and DC signals, which is important for measuring distorted waveforms. Users can also switch to MEAN value detection mode.
• Low-pass filter: A low-pass filter function helps with accurate measurements of variable frequency drives (VFDs) and other electrical noise.
• Safety features: The KEW 1052 is built with industrial safety in mind and is rated for IEC 61010-1 CAT IV 600V and CAT III 1000V. It also includes a terminal shutter mechanism to prevent incorrect test lead insertion into the current terminals.
• Data management: The meter has a large internal memory for data logging (1,600 points) and manual data saving (100 points). With an optional USB communication set, you can download data and perform live monitoring on a PC.
• User calibration: The calibration function allows users to perform adjustments for consistent measurement quality over time.
• Display: It has a large, 6,000-count, backlit LCD display for easy readability in various lighting conditions.
• Wide operating temperature: The KEW 1052 is rated for a wide operating temperature range of -10 to 55ºC
