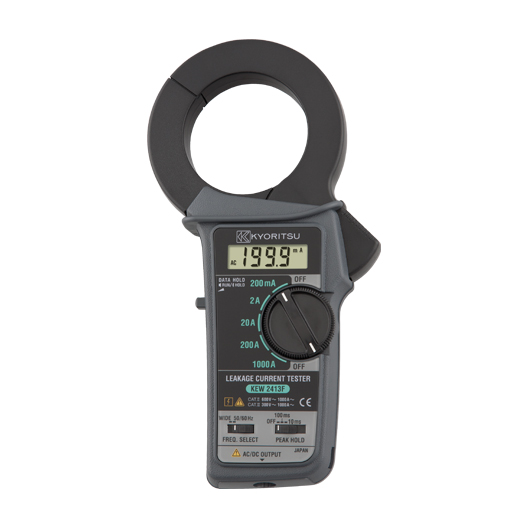

Key Features- Measurement ranges: Measures AC current across several ranges: 200mA, 2A, 20A, 200A, and 1000A.
- Leakage current resolution: Offers a minimum resolution of 0.1mA for sensitive leakage current detection.
- Large jaw size: The clamp has a wide jaw opening of up to 68mm, allowing it to easily clamp around all three or four wires (3 phases) at once.
- Frequency filter: A built-in frequency filter switch can be set to either "50/60Hz" or "WIDE." The 50/60Hz setting filters out high-frequency components to measure only the fundamental frequency, while the WIDE setting covers a broader frequency spectrum.
- Peak hold: Features a peak hold function with selectable response times of 10ms or 100ms, which is useful for capturing transient currents or inrush currents.
- Analog output terminal: Includes a two-way analog output terminal that provides either AC or DC voltage, allowing for connection to an oscilloscope for waveform monitoring or a chart recorder for continuous logging.
- Accuracy: The accuracy varies depending on the frequency range and whether the filter is engaged. It offers improved accuracy on the 50/60Hz setting and higher measurement capability up to 1kHz in WIDE mode.
- Shielded jaws: Its jaws are specially shielded to minimize the effect of external stray magnetic fields, ensuring more accurate and reliable low-current readings.
|
