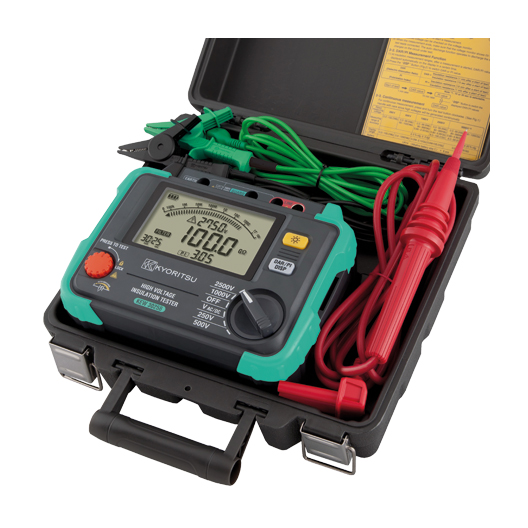

Kyoritsu 3025B Digital High Voltage Insulation Tester, 2.5 kV
Kyoritsu 3025B Digital High Voltage Insulation Tester, 2.5 kV
Kyoritsu 3025B Digital High Voltage Insulation Tester, 2.5 kV
Kyoritsu 3025B Digital High Voltage Insulation Tester, 2.5 kV

Kyoritsu 3025B Digital High Voltage Insulation Tester, 2.5 kV

Brand
KYORITSU

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

DescriptionThe Kyoritsu 3025B is a digital high-voltage insulation tester with a maximum test voltage of 2.5 kV. It is primarily used for diagnosing the insulat
€1,190.00

🛡️ Buy with Confidence

  • Shipping: €30 flat rate across the EU
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: National Company for Industrial Equipment Marketing NCIEM UG (haftungsbeschränkt)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: European Union Only, Policies apply to purchases made on nciem.de
Description

The Kyoritsu 3025B is a digital high-voltage insulation tester with a maximum test voltage of 2.5 kV. It is primarily used for diagnosing the insulation resistance of electrical systems and equipment.

Key Features
  • Insulation resistance test voltages: 250V, 500V, 1000V, and 2500V.
  • Maximum insulation resistance: Measures up to 100 GΩ.
  • Measurement functions: Includes Polarization Index (PI) and Dielectric Absorption Ratio (DAR) diagnostic tests.
  • Short circuit current: Up to 1.5 mA.
  • Live circuit warning: Displays a warning symbol and sounds an audible alert.
  • Noise reduction filter: Provides stable measurements by reducing noise interference.
  • Display: Large digital display with a bar graph and backlight for clear readings.
  • Safety standards: IEC 61010-1 CAT IV 300V and CAT III 600V.
  • Power source: 8 x LR14/R14 (C size) alkaline batteries.
  • Weight: Approximately 1.7 kg, including batteries.
Download Data Sheet
