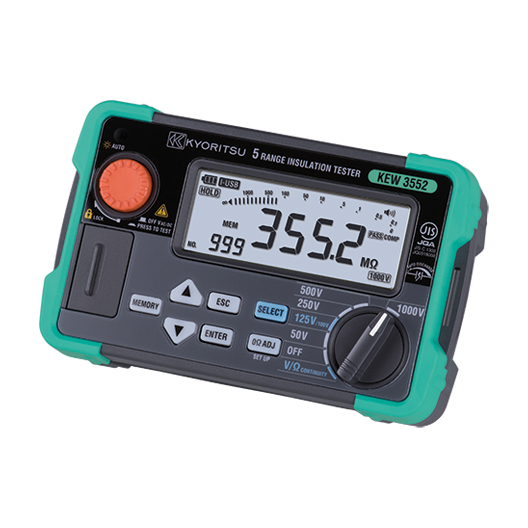

Key Features- Bluetooth communication: Connects to a compatible tablet or smartphone via the "KEW Smart Advanced" app, allowing for real-time monitoring and wireless data transfer. This eliminates the need for manual note-taking in the field and simplifies reporting.
- Fast measurement speed: Achieves insulation resistance measurements in as little as 0.5 seconds.
- Six test voltages: Offers a range of selectable test voltages—50V, 100V, 125V, 250V, 500V, and 1000V—for versatile testing applications.
- Internal memory: Can store up to 1,000 sets of measurement data.
- Diagnostic tests: Supports Polarization Index (PI) and Dielectric Absorption Ratio (DAR) diagnostic insulation tests.
- Backlit display: A large, digital LCD with a backlight and an auto-sensing light sensor improves visibility in dimly lit areas.
- Continuity testing: Includes a continuity test function with a "Zero \(\Omega \) adjustment" to compensate for test lead resistance.
- Auto voltage detection: Automatically detects whether the measured voltage is AC or DC when the voltage is 30V or higher.
|
