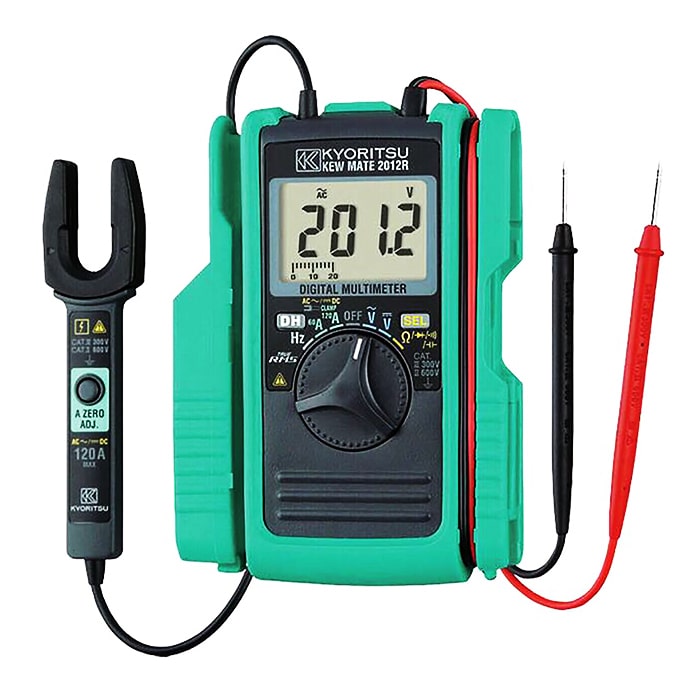

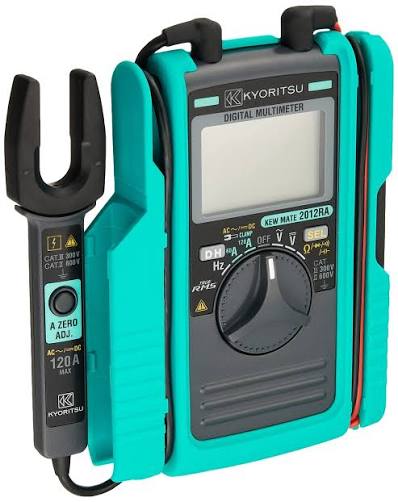

The Kyoritsu KEW MATE 2012RA is a compact, heavy-duty digital multimeter with an integrated AC/DC open-jaw clamp sensor, designed for convenient electrical measurements in tight and crowded wiring areas. It can measure AC/DC current up to 120 A, as well as AC/DC voltage, resistance, capacitance, frequency, continuity, and diode measurements. Its compact design, robust cable protection, and safety-rated construction make it suitable for electrical maintenance, troubleshooting, and field service applications.
Key Features
- AC/DC current measurement up to 120 A
- Open-jaw clamp sensor for easy current measurement without disconnecting wires
- Measures AC and DC voltage up to 600 V
- True RMS measurement for accurate AC readings
- Resistance measurement up to 60 MΩ
- Capacitance measurement up to 40 µF
- Frequency measurement up to 300 kHz
- Diode test and continuity buzzer
- Thin open jaws suitable for accessing wires in tight spaces
- Data hold function for freezing displayed readings
- Auto power-save function to extend battery life
- Test probe can be fixed to the holster for convenient operation
- Protective test-lead caps help reduce the risk of accidental short circuits
- Compact pocket-size design: 128 × 92 × 27 mm
- Lightweight at approximately 220 g including batteries
- Safety rated CAT III 300 V / CAT II 600 V
