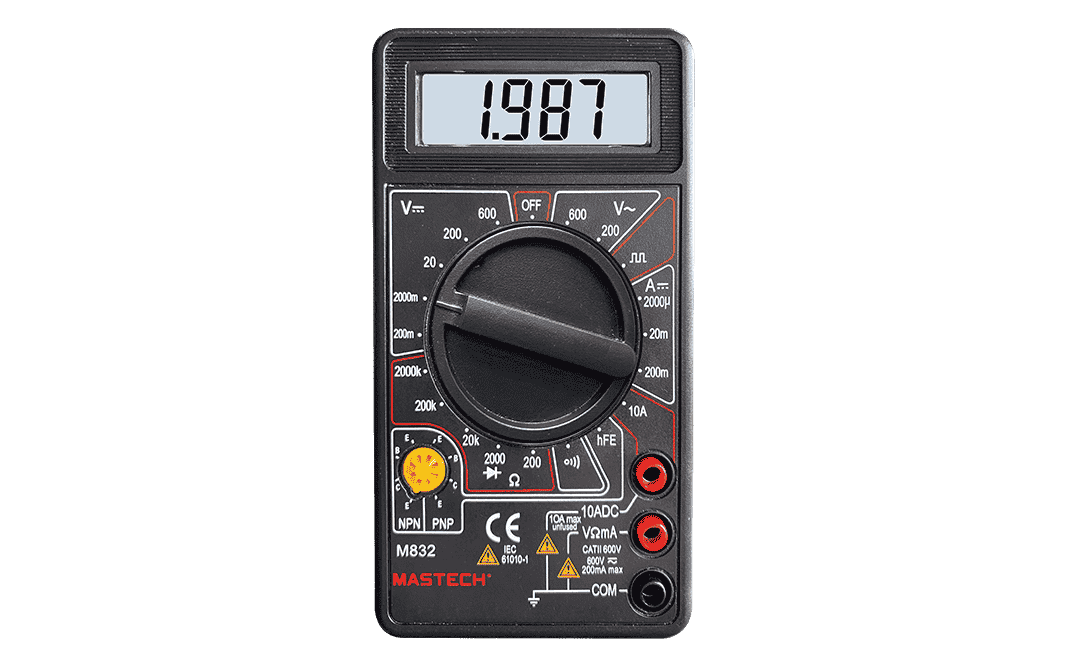

Mastech M832 Manual-Ranging Digital Multimeter

Description

The Mastech M832 is a compact, manual-ranging digital multimeter suitable for basic electrical testing and hobbyist use. While referred to as "pocket-sized," it uses two separate test leads and is not a pen-type multimeter. The device measures DC voltage, AC voltage, DC current, and resistance.

Key Features

• Manual ranging: You must manually select the correct range for each measurement using the rotary dial.
• Audible continuity buzzer: The M832 features a continuity test with an audible buzzer for quickly checking circuit connections.
• Transistor test (hFE): Includes a function to check the gain of bipolar transistors.
• Diode test: Can check the forward voltage drop across a diode.
• Square wave generator: A distinctive feature of the M832 is its built-in 50 Hz square wave generator, useful for testing audio amplifiers and other electronic circuits.
• Compact design: Its small size and light weight make it highly portable.
• Safety rating: Equipped with a CAT II 600V safety rating.
• Display: Features a 3 1/2-digit LCD display with a 2000-count maximum reading.
• Power: Operates on a single 9V battery.
