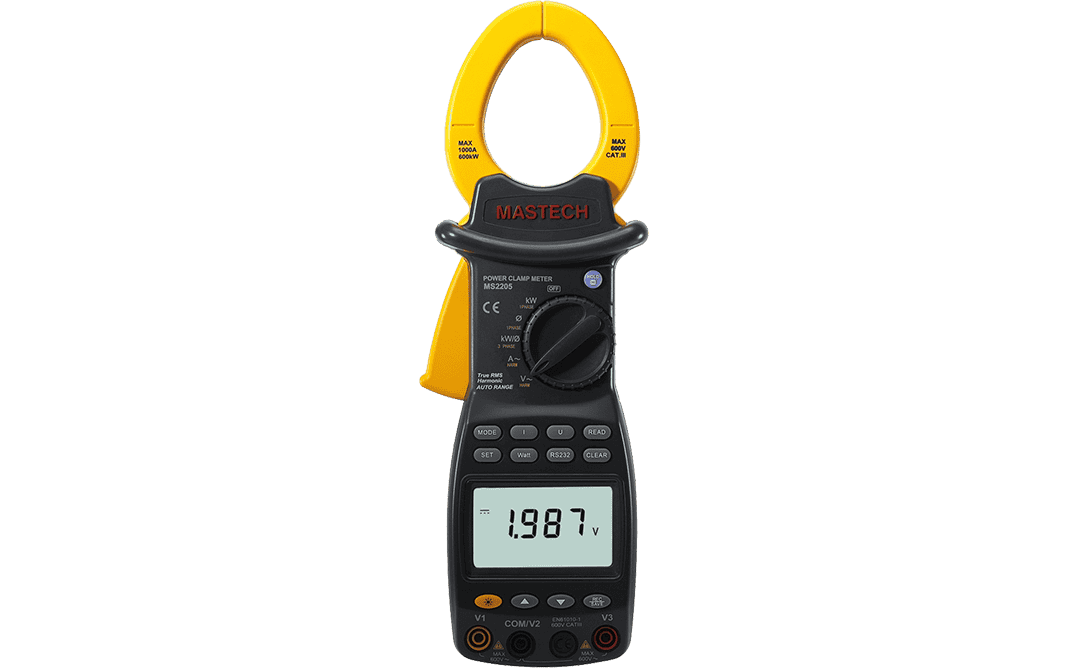

Key Features- Harmonic analysis: A key feature of the MS2205 is its ability to measure harmonics from the 1st up to the 20th order, which helps in diagnosing power quality issues.
- True RMS: The meter provides True RMS measurements for both AC voltage and current, ensuring accuracy even with non-sinusoidal or distorted waveforms.
- Large jaw opening: The robust clamp jaw has a $\Phi$50mm (2.0") opening, making it suitable for larger conductors.
- Data logging: The MS2205 can store up to 100 groups of measurement data, allowing for later analysis.
- PC interface: An RS232 interface and analysis software are included for transferring logged data to a computer.
- Dual display: A large, backlit dual LCD with a 6000-count resolution displays multiple parameters simultaneously.
- Safety rating: It is rated for CAT III 600V, suitable for use in most commercial and industrial environments.
- Other features: The meter also includes automatic and manual ranging, a data hold function, a backlight, and an auto-power-off feature.
|
