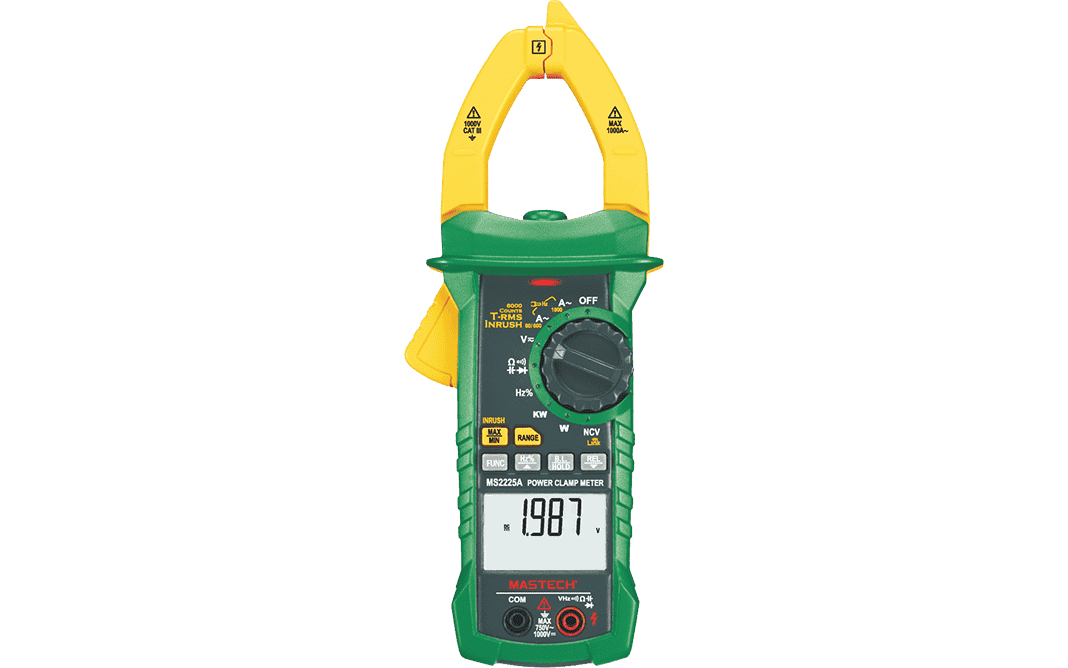

Key Features- Multifunctional measurement: Measures AC/DC voltage, AC current, resistance, capacitance, frequency, and various power factors.
- True RMS: The clamp meter uses True RMS (Root Mean Square) technology, which provides accurate readings on both linear and non-linear loads.
- Auto and manual ranging: You can choose between automatic and manual ranging for greater control and flexibility in your measurements.
- Max jaw opening: The clamp has a 40mm or 1.6-inch jaw opening, allowing it to measure large conductors.
- Display: Features a 6,000-count backlit display with a worklight to ensure visibility in low-light conditions.
- Wireless APP connection: This allows for remote monitoring and data logging via a smartphone app.
- Inrush current measurement: This function allows the meter to capture the maximum current draw when equipment is first powered on.
- Data logging: Allows for the storage of up to 28 groups of measurements.
- Safety features: The device includes a non-contact voltage (NCV) detection function for increased safety during use.
- CAT IV safety rating: The MS2225A has a safety rating of CAT IV 600V and CAT III 1000V.
|
