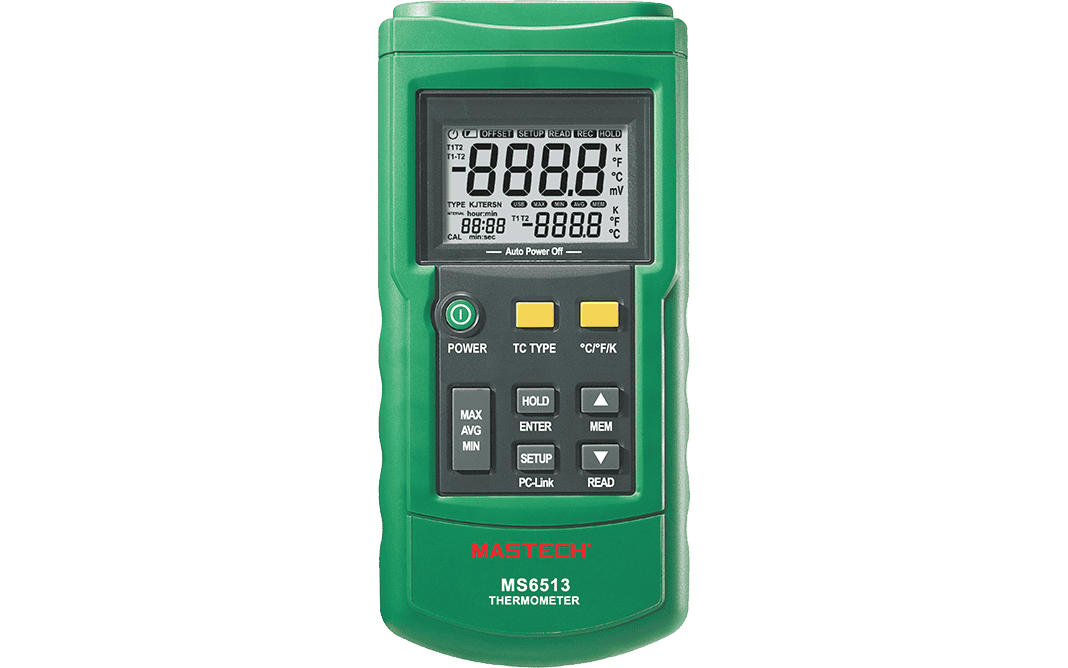

Key Features- Thermocouple compatibility: Supports seven different thermocouple types: K, J, T, E, R, S, and N, enabling it to cover a broad range of temperatures.
- Temperature range: The specific temperature range depends on the thermocouple type used, with ranges spanning from as low as -250°C (-418°F) for Type T to as high as 1767°C (3212°F) for Type R and S.
- Data logging: Stores up to 1,000 groups of measurements, which can be saved manually or automatically for later review.
- USB interface: A USB port and compatible software allow you to transfer logged data to a computer and perform real-time data streaming.
- Measurement functions: Includes MAX/MIN/AVG/DIF (maximum, minimum, average, and difference) functions for comprehensive analysis of temperature trends.
- Single-channel input: The device is designed to accept input from a single thermocouple at a time.
- Display: Shows measurements in Celsius (°C), Fahrenheit (°F), and Kelvin (K).
- Additional features: Includes a data hold function to freeze readings, an auto power-off function to conserve battery life, and a low battery indicator.
- Power source: Operates on one 9V (6F22) battery.
|
