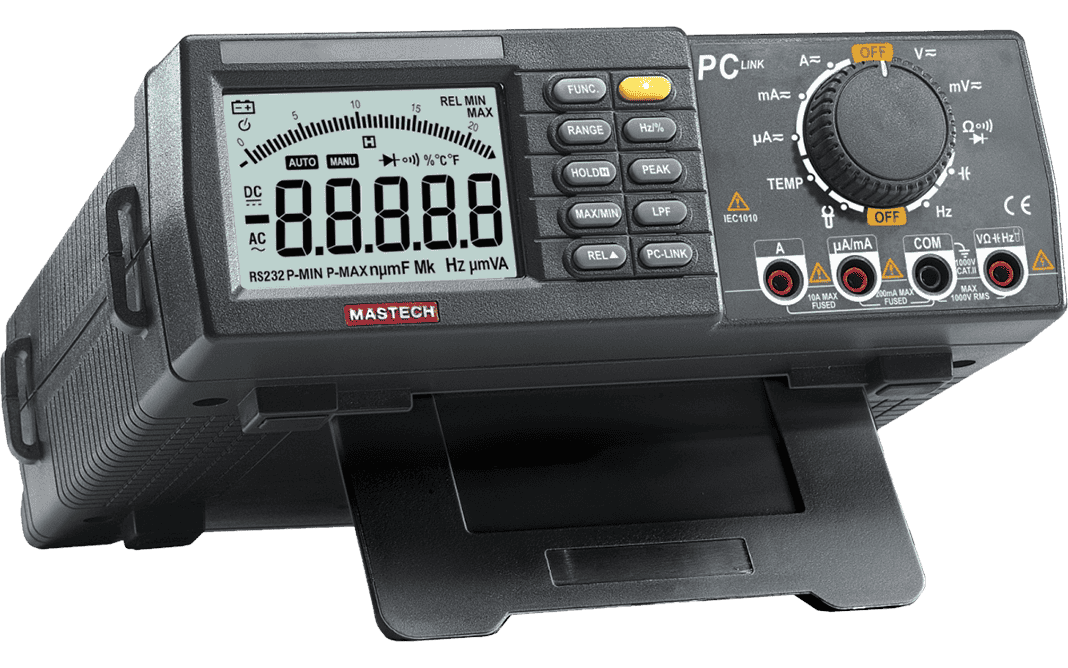

Key Features- Dual Display: Features a large dual display with a 22,000-count resolution and a 44-segment bar graph. The bar graph is useful for visualizing rapid changes in signals, similar to an analog needle.
- True RMS: The True RMS (Root Mean Square) capability ensures accurate AC measurements, even on complex and distorted waveforms.
- Auto and Manual Ranging: Offers the flexibility of automatically selecting the correct range for convenience, and manual ranging for locking into a specific scale.
- PC Connectivity: Equipped with an RS-232 interface and compatible PC software for data logging, analysis, and display on a computer.
- Low-Pass Filter: Includes a 1kHz low-pass filter for filtering out high-frequency noise when measuring AC voltage and current.
- Comprehensive Measurement Functions: In addition to standard AC/DC voltage, current, and resistance, it measures capacitance, frequency, and temperature.
- Dual Power Supply: Can be powered by either an AC main supply or batteries (6x AA and 1x 9V), which is convenient for situations where mains power is unavailable.
- Data Handling: Features include Data Hold to freeze a reading, MAX/MIN to capture the highest and lowest values, Peak Measurement to capture transient peaks, and Relative Measurement to zero out the test leads for more accurate low-resistance measurements.
|
