Key features

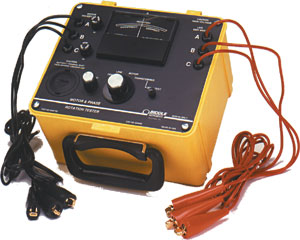

- Multiple functions: The 560400 combines several testing functions in a single instrument. It can be used to test:
- Phase sequence/rotation: Determines the correct phase rotation of energized AC power lines up to 600 volts. This is crucial for ensuring a motor rotates in the intended direction.
- Motor rotation: Confirms the rotation direction of one-, two-, or three-phase motors before they are connected to a power line.
- Transformer polarity: Identifies the correct polarity of instrument and power transformers.
- Continuity: Can be used to check for continuity in electrical circuits.
- Broad frequency range: Operates across a wide range of frequencies, including 25, 50, 60, and 400 Hz, making it suitable for various applications.
- Simple and safe operation: Eliminates the need for potentially hazardous temporary connections to determine motor rotation. It uses a DC zero-center ammeter to indicate correct or incorrect rotation or polarity.
- Durable design: Enclosed in a high-impact ABS plastic case with a handle and removable lid for ruggedness and portability.
- Included accessories: Comes with attached test leads, standard fuses, an alkaline D-battery, and an instruction manual.
|
