- Key features
- Test Capabilities: Measures cell impedance, voltage, and temperature to evaluate battery condition.
- Discharge Testing: Supports discharge testing and can record voltage, DC current, impedance, and temperature throughout the discharge cycle. This is particularly useful when used with an optional load bank.
- High Voltage Measurement: Measures DC voltages up to 1000 V and AC voltages up to 600 V, allowing for testing in applications like solar combiner boxes and inverters.
- User Interface and Data Management:-

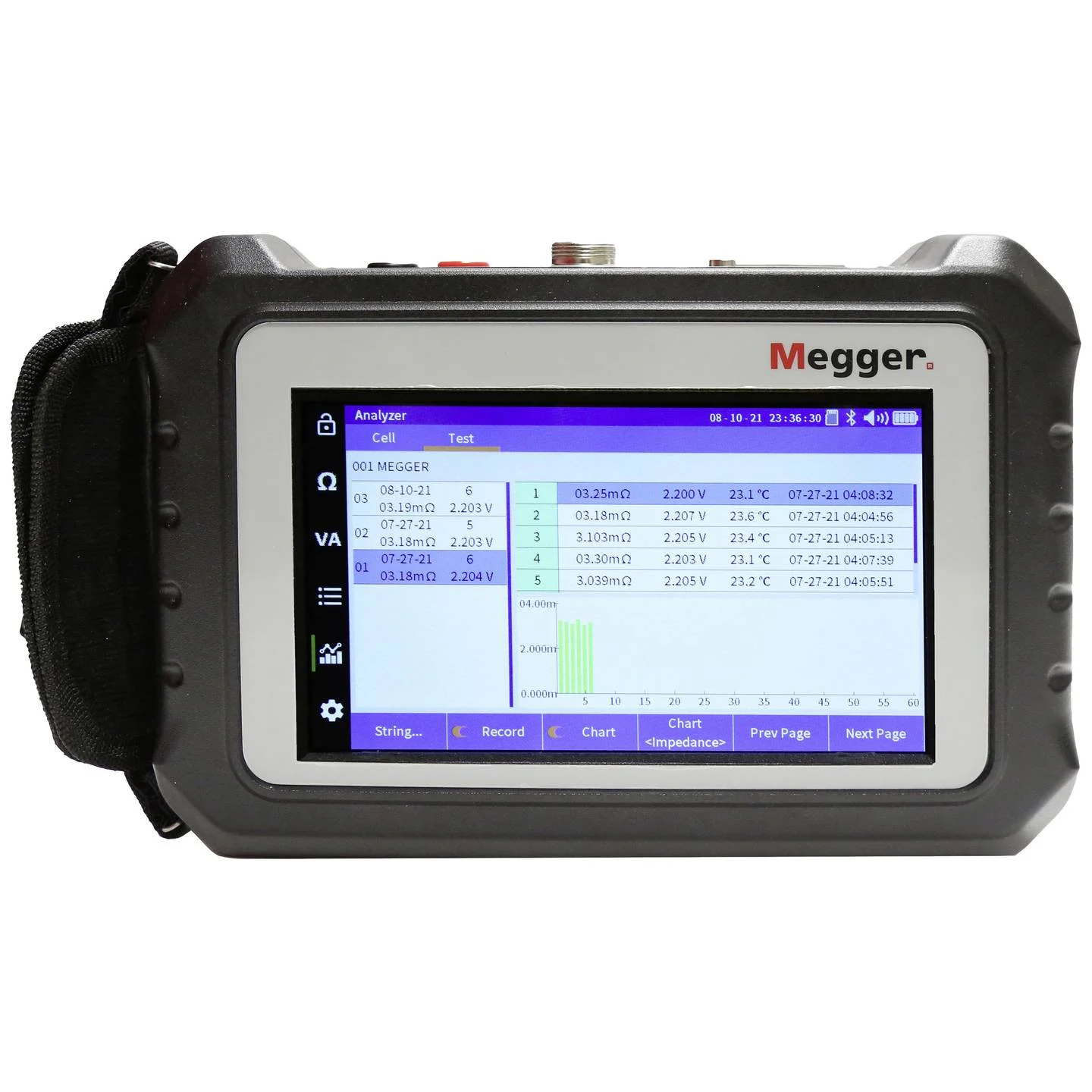

- Touchscreen: Features an easy-to-use touchscreen for setting up tests and viewing data trends directly on the device.
- Data Transfer: Records can be downloaded via a USB cable or SD card for detailed analysis using Megger's PowerDB software. Wireless data transfer is also supported.
- Advanced version: The BITE5 Advanced model offers higher voltage measurement capabilities (up to 500 Vdc), along with the ability to measure inter-cell strap resistance and monitor battery charging.
- Technical specifications:-
- Input Power: Rechargeable Li-ion battery pack (>8 hours of use) or AC adapter (100–240 V AC).
- Internal Impedance: Ranges from 3 mΩ to 300 Ω.
- Voltage DC: Ranges up to 1000 V with 1 V resolution.
- Voltage AC: Ranges up to 600 V with 1 V resolution.
- Current DC/AC: Ranges up to 1000 A.
- Temperature: Ranges from 10 °C to 100 °C (50 °F to 212 °F).
- Memory: Up to 16 GB flash storage, capable of storing thousands of test records.
- Environmental Protection: IP54 rated for protection against dust and water ingress.
|
