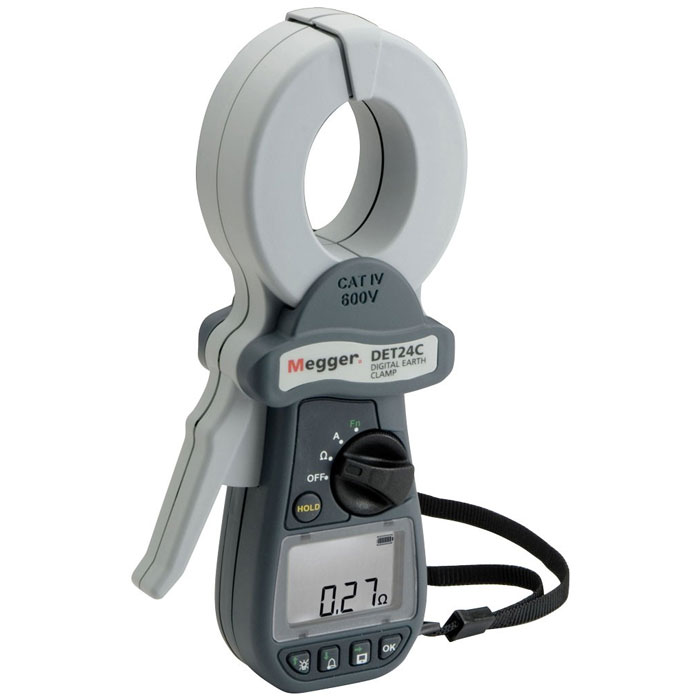

Key features - Measurement capabilities: Measures ground resistance from \(0.05\text{\ }\Omega \) to \(1500\text{\ }\Omega \) and true RMS ground leakage current from \(0.5\text{\ mA}\) to \(35\text{\ A}\).
- Stakeless testing: The clamp-on design allows for testing on live systems without driving earth spikes, which saves time and is ideal for sites where power continuity is critical.
- Bluetooth connectivity: Test results can be wirelessly downloaded to a PC via Bluetooth for easy logging, analysis, and report generation using the included PowerDB Lite software.
- Ergonomic design: The elliptical-shaped clamp head improves access to cables and earth straps in tight spaces, accommodating conductors up to 37 mm in diameter and 50 mm earth tapes.
- Enhanced durability: The clamp jaws have a flat, smooth mating surface, which is easier to clean and more reliable than interlocking teeth found on older models.
- Safety features: It has a CAT IV 600V safety rating and features a built-in filter function to reduce electrical noise in measurement environments.

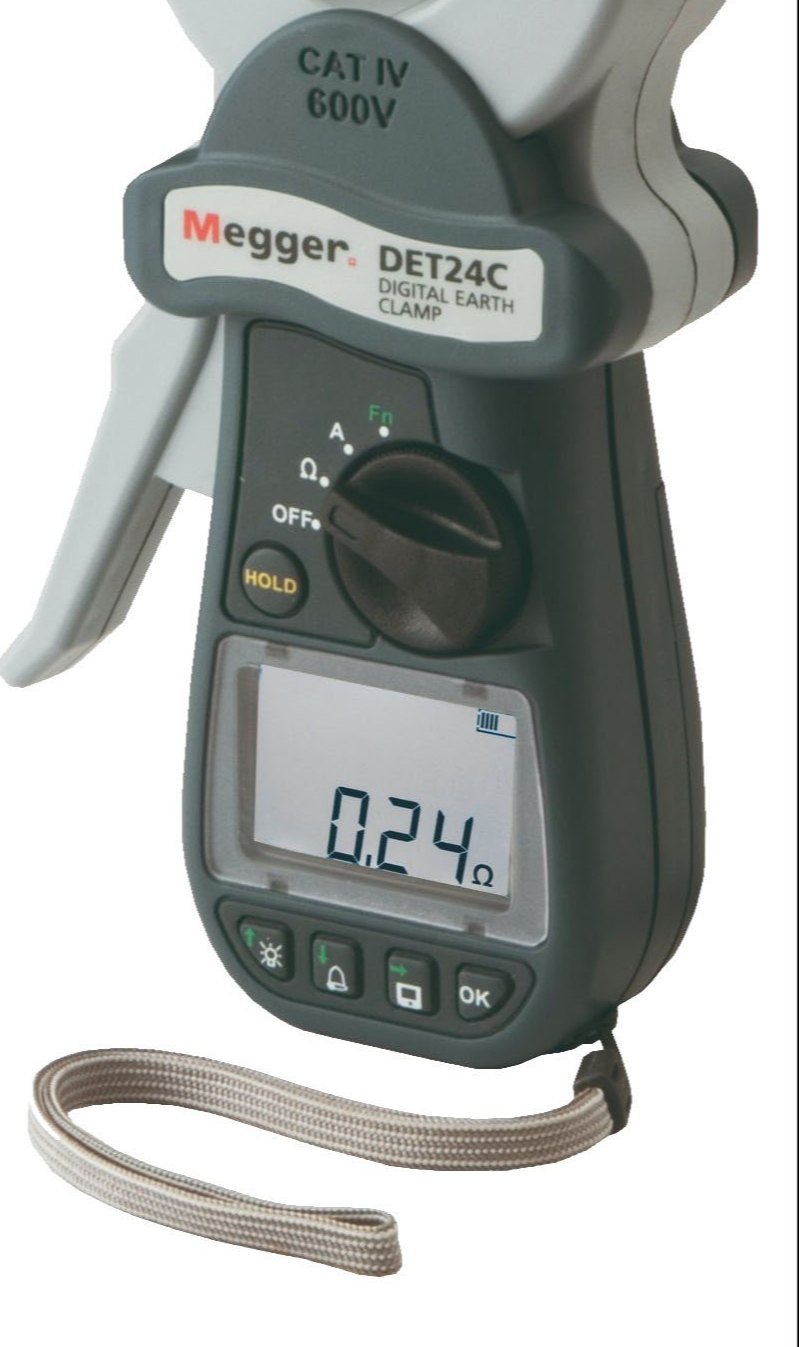

- Data storage: The DET24C can store up to 2,000 time-and-date-stamped test results in its internal memory.Display: A backlit LCD display makes it easy to read measurements in low-light conditions.
- Accessories: The tester is supplied with a carrying case, carrying strap, calibration check accessory, and the PowerDB Lite software.
|
