Key features
- Multiple testing methods: Supports 2, 3, and 4-pole testing methods.
- Attached Rod Technique (ART): With an optional ICLAMP accessory, it can measure earth rod resistance without disconnecting the ground system.
- Stakeless testing: Using optional ICLAMP and VCLAMP accessories, you can perform measurements in situations where driving ground stakes is not practical.
- Wide measurement range: Measures resistance from 0.01Ω to 200kΩ.
- Noise rejection: Rejects noise voltages up to 40V peak-to-peak and features selectable test frequencies (94, 105, 111, and 128 Hz) to minimize interference.
- Eatherproof and durable: The unit has an IP54 ingress protection rating, making it suitable for outdoor use.
- User-selectable voltage: Allows you to choose between 25V and 50V output voltages, with the 25V option being useful for agricultural settings.
- Safety rating: Rated CAT IV at 100V for enhanced safety.

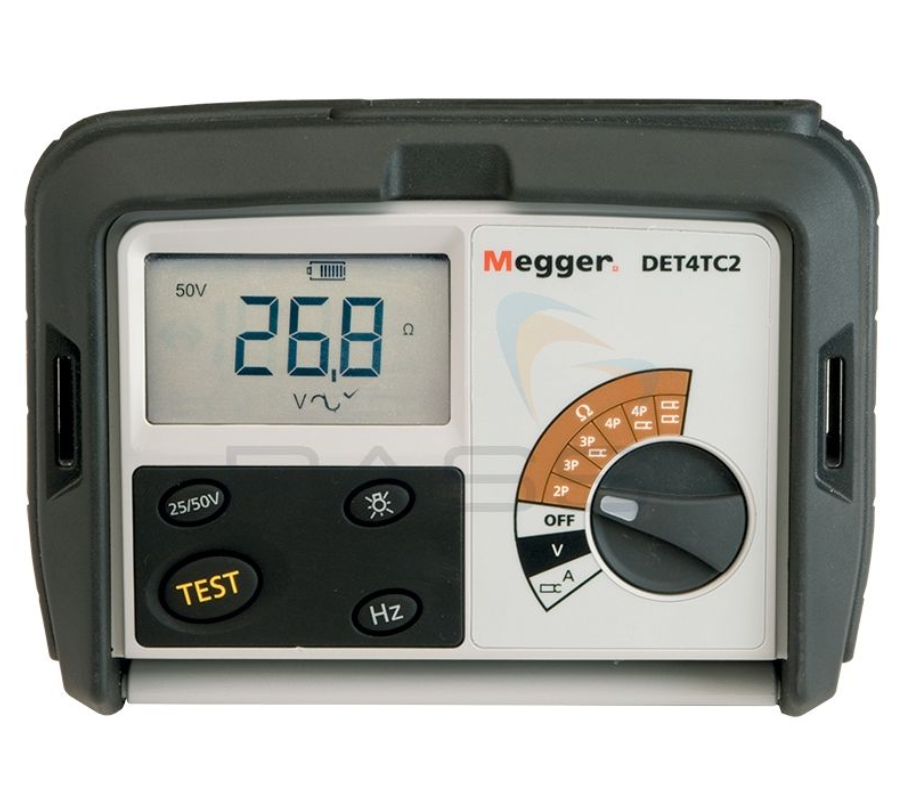

- Backlit display: A large, backlit LCD makes it easy to read measurements in various lighting conditions.
|
