Key features
- Multiple testing methods: This versatile device can perform 2, 3, and 4-point testing, as well as the Attached Rod Technique (ART) and stakeless testing.
- Testing with clamps: The included ICLAMP allows for ART testing without the need to disconnect the earth rod, while the VCLAMP enables true stakeless measurements.
- Measurement capabilities: It offers a wide resistance range of 0.01 Ω to 200 kΩ and can measure earth voltage up to 100 V AC and ground current from 0.5 mA to 19.9 A (with the ICLAMP).
- Advanced functionality: The tester is designed to operate accurately even in electrically noisy environments, featuring superior noise rejection up to 40V peak-to-peak and multiple user-selectable test frequencies (94, 105, 111, and 128 Hz).
- User-friendly operation: It features a simple one-button operation, a backlit LCD for use in dim lighting, and clear warning indicators for test failures.
- Durability and safety: The unit is housed in a rugged, weatherproof case with an IP54 rating and is safety rated to CAT IV 100 V.
- Rechargeable: The DET4TCR2 is powered by rechargeable AA NiMH batteries with an internal charger, differentiating it from the dry-cell powered DET4TC2 model.

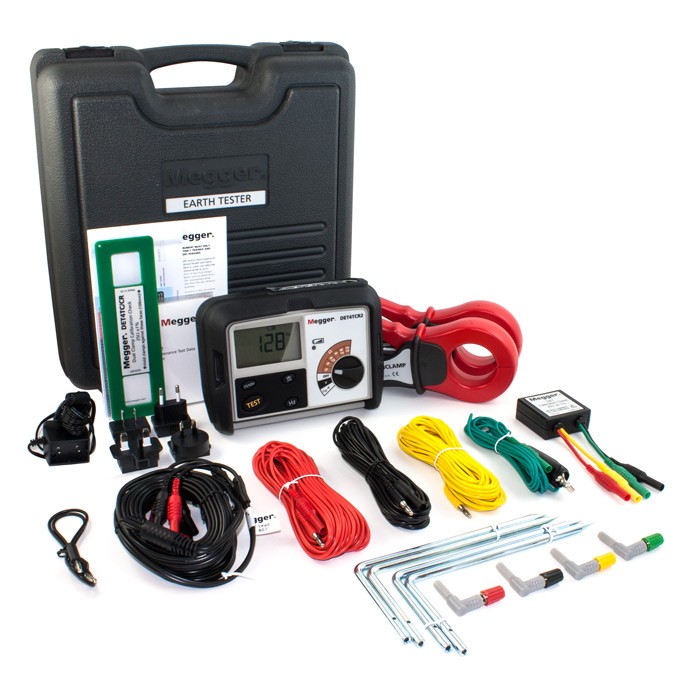

- Special kit includes:-
- Megger DET4TCR2 rechargeable earth tester
- ICLAMP (for ART testing)
- VCLAMP (for stakeless testing)
- Hard carry case
- Four earth test stakes
- Connection leads
- Field calibration check for the instrument and clamps
- External AC/DC charger
|
