Key features
- Test voltages: The MIT410/2 can perform insulation testing at 50V, 100V, 250V, 500V, and 1000V.
- High accuracy: It uses a feedback-controlled test voltage that limits over-voltage to 2% (compared to the industry standard of 10–20%), resulting in more accurate test voltages.
- Wide test range: It offers an insulation resistance test range of up to 200 GΩ.
- Continuity testing: It features a single, faster, auto-ranging continuity test from 0.01 Ω to 1 MΩ.
- Safety features: The device includes live circuit detection and protection, and is rated for CAT IV 600V applications.
- Durability: Its tough, over-molded ABS housing provides shock absorption and an IP54 weatherproof rating.
- Advanced functions: The MIT410/2 model includes Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions.

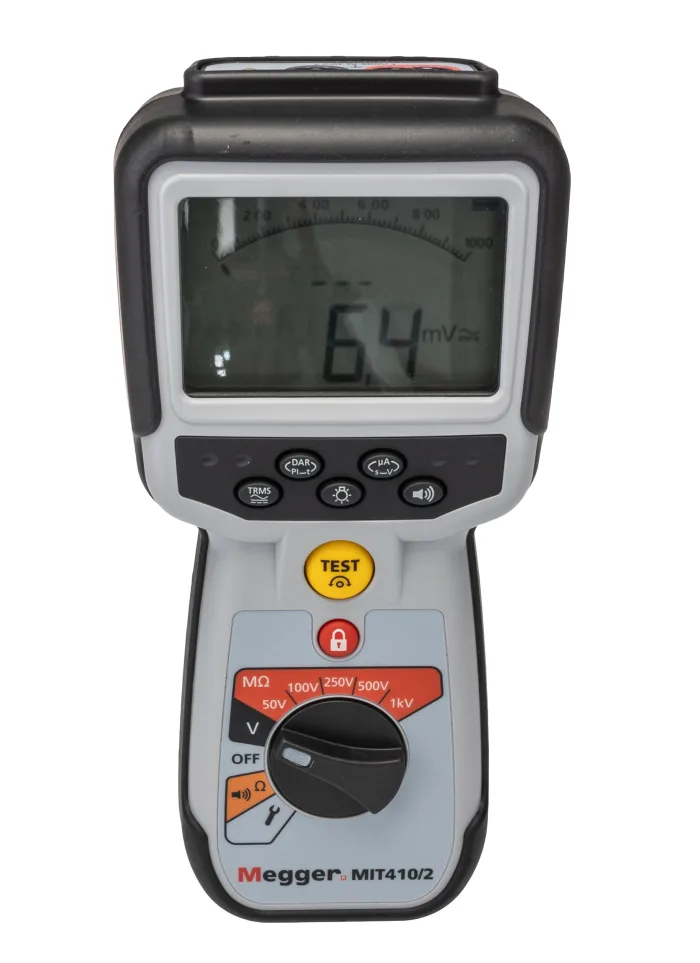

- Dual display: The screen combines an analog arc with a dual digital readout for easy reading of measurements and additional data.
|
