Megger MIT525 5-kV Insulation Resistance Tester
Megger MIT525 5-kV Insulation Resistance Tester
Megger MIT525 5-kV Insulation Resistance Tester
Megger MIT525 5-kV Insulation Resistance Tester
Megger MIT525 5-kV Insulation Resistance Tester
Megger MIT525 5-kV Insulation Resistance Tester

Megger MIT525 5-kV Insulation Resistance Tester

Brand
Megger

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

DescriptionThe Megger MIT525 is a compact and lightweight 5 kV diagnostic insulation resistance tester for high-voltage electrical equipment. It features a toug
€5,142.00

🛡️ Buy with Confidence

  • Shipping: €30 flat rate across the EU
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: National Company for Industrial Equipment Marketing NCIEM UG (haftungsbeschränkt)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: European Union Only, Policies apply to purchases made on nciem.de
Description

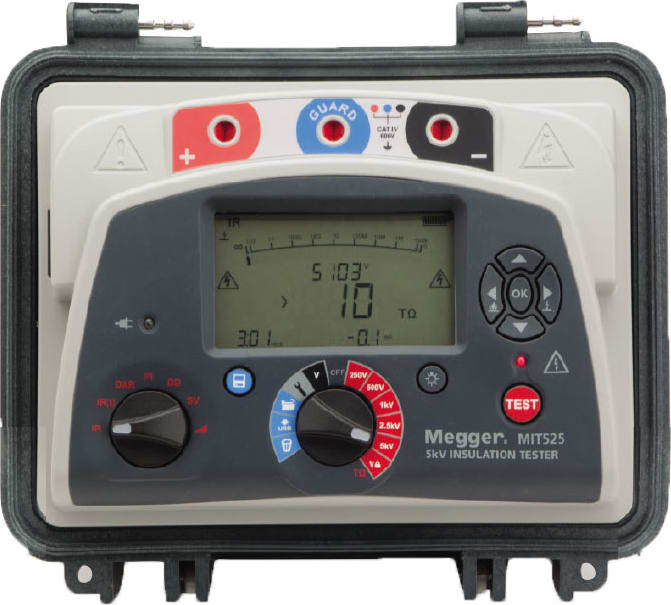

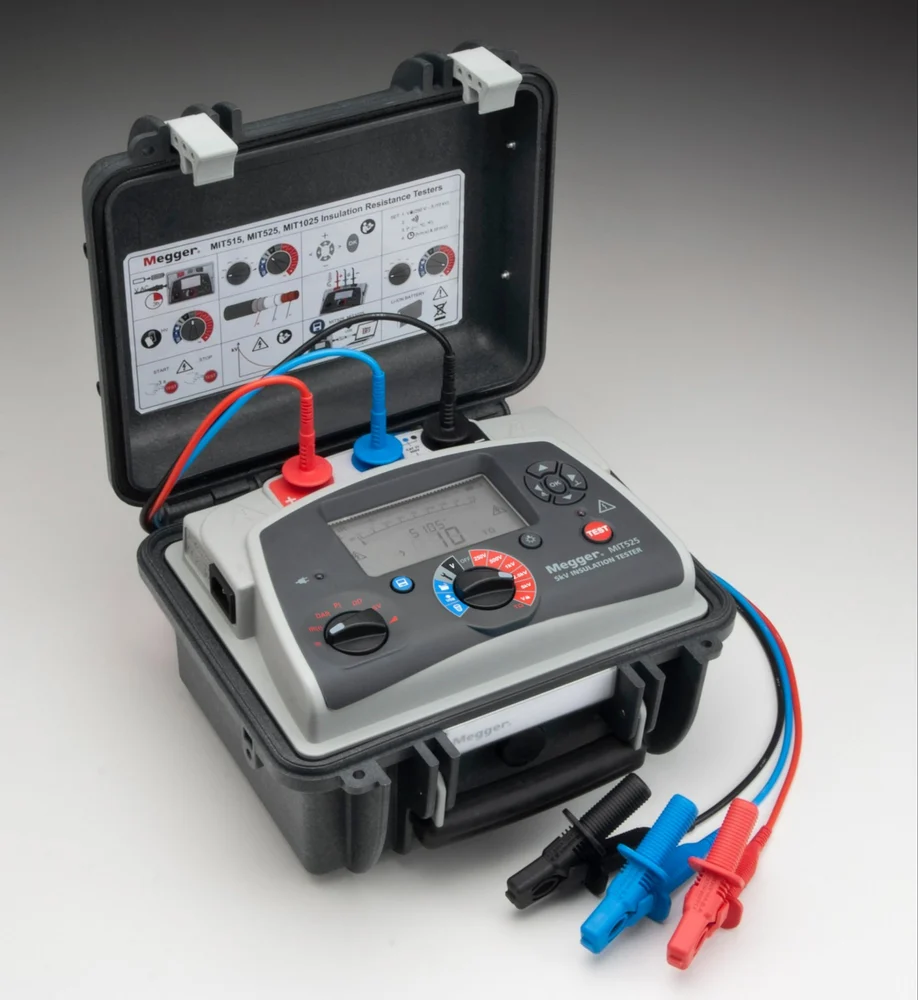

The Megger MIT525 is a compact and lightweight 5 kV diagnostic insulation resistance tester for high-voltage electrical equipment. It features a tough dual-case design with an inner, fire-retardant case and an outer, IP65-rated case for protection against dust and water.

Key features

  • Insulation resistance: Measures up to 10 TΩ at 5 kV.
    Test voltages: Provides five preset voltages (250 V, 500 V, 1000 V, 2500 V, 5000 V) plus a user-defined lock voltage range from 100 V to 5 kV.
  • Diagnostic tests: Performs a full suite of diagnostic tests, including:
          1. Timed Insulation Resistance (IR)
          2. Polarisation Index (PI)
          3. Dielectric Absorption Ratio (DAR)
          4. Dielectric Discharge (DD)
          5. Step Voltage (SV)
          6. Ramp testing
  • Power: Equipped with a rapid-charge Li-ion battery that provides up to 6 hours of continuous testing at 5 kV into 100 MΩ. It can also operate from mains power, even if the battery is dead.
  • Safety rating: Rated CAT IV 600 V up to 3000 m altitude.
    Display and interface: Features a large, clear, backlit LCD for viewing multiple results at once.
  • Memory: Includes advanced memory with time/date stamping and the ability to download stored data via a USB interface.
  • Noise immunity: Offers a noise filter that rejects up to 3 mA of noise.
  • Portability: Weighs 4.5 kg, making it easy to carry and transport.
Download Data Sheet
