Key features
- Dual-channel measurement: The MTO106 can measure two winding resistances simultaneously, which improves testing efficiency.
- High test voltage: A 48V DC test voltage helps achieve fast saturation of transformer cores for quicker, more accurate readings.
- High accuracy: It provides a measurement accuracy of ±0.25%, ensuring reliable results.
- Adjustable test current: The test current can be set to five different ranges, accommodating a variety of transformer sizes.
- Intuitive operation: The device features a simple, multimeter-style operation with a single selector switch and test button, minimizing the need for extensive training.
- Automatic discharge: A built-in, passive discharge circuit automatically de-energizes the transformer at the end of each test, enhancing user safety.

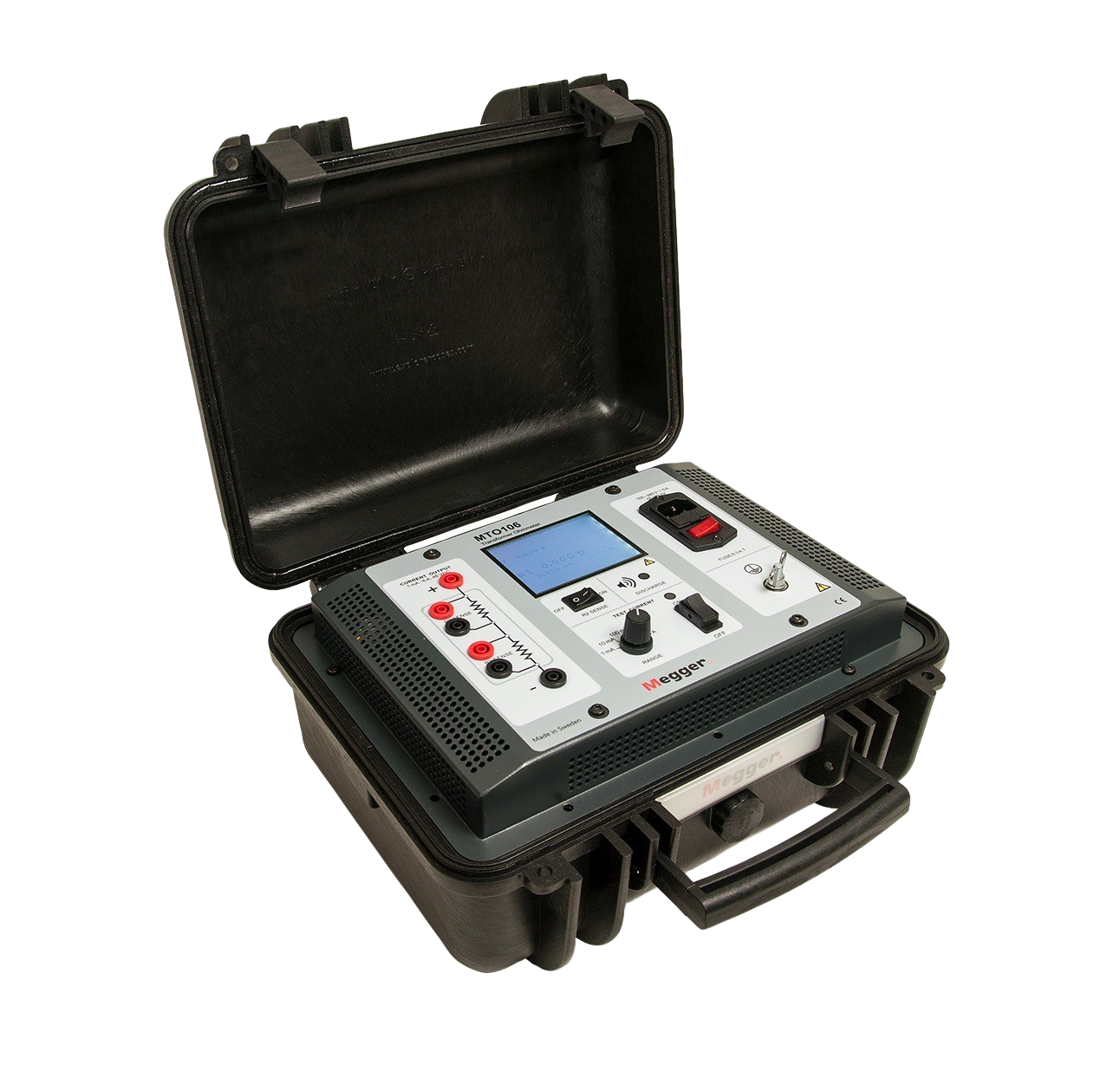

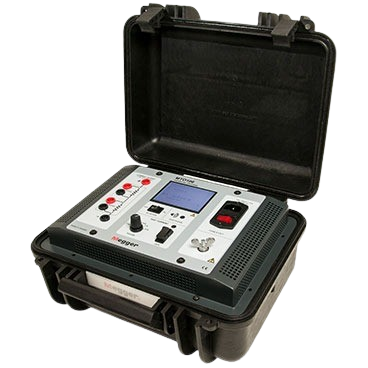

- Rugged and portable design: The ohmmeter is housed in a compact, lightweight, rugged plastic case that is rated IP67 when closed, protecting it from harsh field conditions.
- 10m Kelvin leads: The included 10-meter (33-foot) Kelvin leads are equipped with Kelvin clamps, allowing for a single connection point and enabling tests on hard-to-reach or pole-mounted transformers.
- Included cable bag: A dedicated cable bag is provided for convenient storage and transport of the leads and accessories.
|
