•Optical Geometry:D/8 (diffused illumination,8-degree viewing angle) SCI &
SCE; Include UV & Exclude UV.
•Conform to Standards: CIENO.15,GB/T3978.GB2893,G -
B/T18833,1S07724-1,ASTME1164,DIN5033 Teil7
•Light Source:Combined Full Spectrum LED Lamp, UV Lamp Integrating Sphere
Size:Φ40mm
•Spectroscopic Method:Plane Grating
•Sensor:Large-area silicon photodiode array (40 pairs of dual columns)
•Wavelength Range:360~780nm Wavelength interval:10nm
•Reflectance Range:0~200%
•Measuring Apertures:Five Apertures: 8mm Platform+ 8mm Tip+ 4mm Platform
+4mm Tip+1*3mm
•Locating Method:Cross Locating+Camera Locating
•Whiteboard Calibration:Non-contact automatic whiteboard Calibration
•Color Spaces:CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, Bxy, DIN
Lab99 Munsell(C/2)
•Color Difference Formula:ΔE*ab, ΔE*uV, E*94, ΔE*cmc(2:1), ΔE*cmc(1:1), Δ
E*00, DINAE99, ΔE(Hunter)
•Observer Angle:2°/10°
•Displayed Data:Spectrogram/values, Samples chromaticity Values, Color Diference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
•Measuring Time:About 1.5s
•Repeatability:Chromaticity Value: MAV/SCI, within ΔE*ab 0.02;Spectral reflectance: MAV/SCI, standard deviation within 0.07% (400~700nm)
•Inter-instrument Error:MAV/SCI, ΔE*ab within 0.18
•Display Accuracy:0.01
•Measurement Mode:Single measurement,average measurement (2-99 times)
•Data Storage:APP mass storage
•Accuracy Guarantee:Guarantee passing the Grade 1 metrology
•Illuminant Life Span:More than 1.5million measurements in 10 years
•Display:TFT True Color 3.5inch, Capacitive Touch Screen
•Data Port:USB, Bluetooth®
•Data Storage:500 pcs standard samples, 20000 pcs samples
•Software support:Andriod, IOS, Windows, Wechat APPlet, Harmony OS.
Welcome to NCIEM.DE
- Contact Form
-
English
- Login / Register

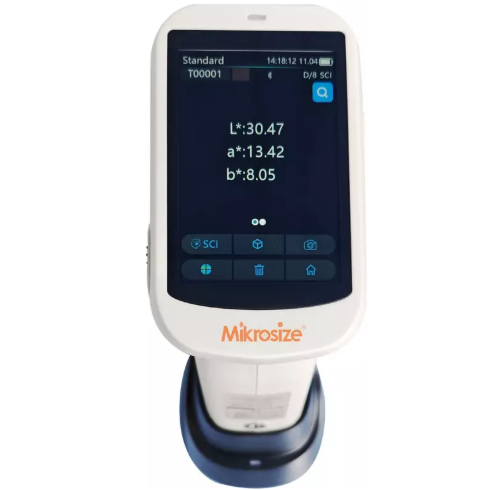

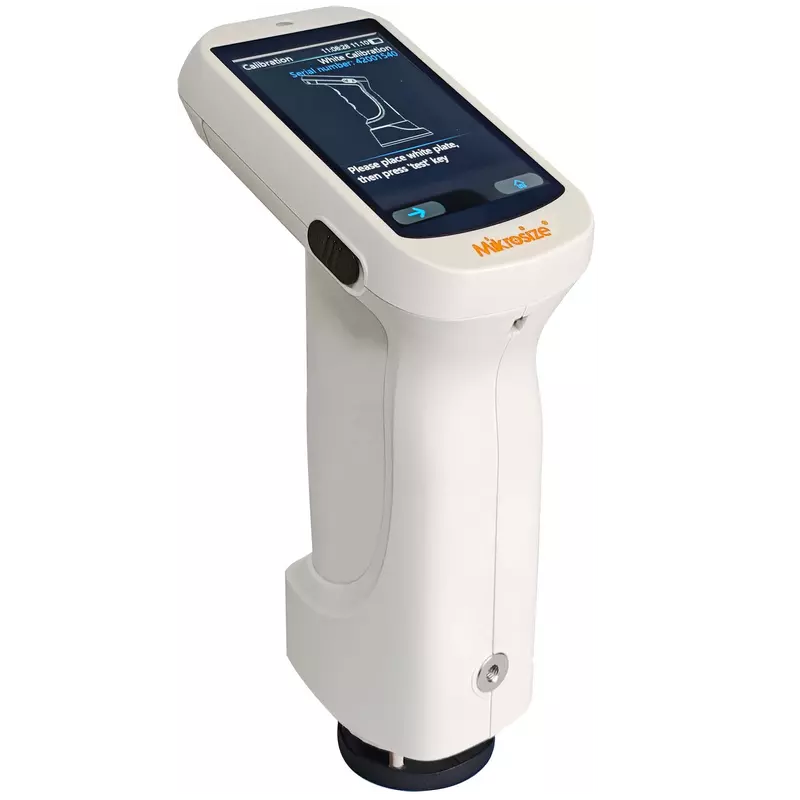

Mikrosize iColor-T407 Plus Spectrophotometer
Brand
Brand names and trademarks are the property of their respective owners and are used solely for product identification.
Available To Order
Out of stock
The Mikrosize iColor-T407 Plus is a high-precision portable grating spectrophotometer designed for industrial color control and analysis. It is used for color detection in industries like plastics, electronics, paint, textiles, and ceramics, supporting both rapid on-site testing and laboratory quality inspection.
€3,625.00
