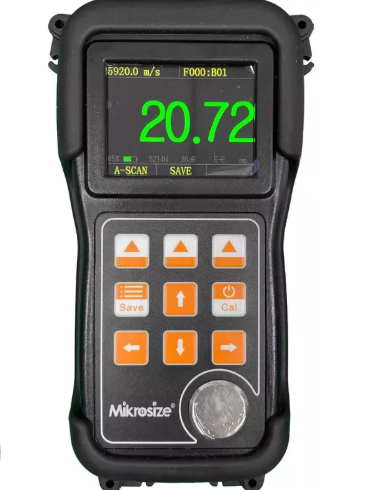

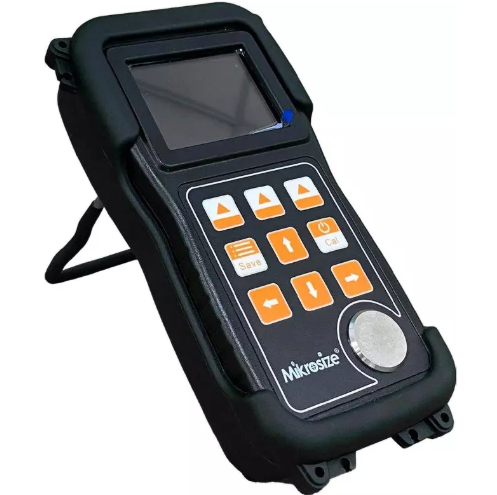

Mikrosize iThick-7000 Ultrasonic Thickness Gauge (WITH A/B-SCAN, LARGE RANGE)
Mikrosize iThick-7000 Ultrasonic Thickness Gauge (WITH A/B-SCAN, LARGE RANGE)
Mikrosize iThick-7000 Ultrasonic Thickness Gauge (WITH A/B-SCAN, LARGE RANGE)
Mikrosize iThick-7000 Ultrasonic Thickness Gauge (WITH A/B-SCAN, LARGE RANGE)

Mikrosize iThick-7000 Ultrasonic Thickness Gauge (WITH A/B-SCAN, LARGE RANGE)

Brand
Mikrosize

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

The iThick-7000 Ultrasonic Thickness Gauge, manufactured by Mikrosize, is a high-performance industrial instrument designed for non-destructive thickness measurement across an extensive range of materials.
€2,925.00

🛡️ Buy with Confidence

  • Shipping: €30 flat rate across the EU
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: National Company for Industrial Equipment Marketing NCIEM UG (haftungsbeschränkt)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: European Union Only, Policies apply to purchases made on nciem.de

•Measurement Range: 0.15~3200mm(Longitudinal wave carbon steel)
•Bandwidth:1MHz~20MHz
•Receiving Gain: 96dB, step pace1dB or 6dB
•Filter: Broadband, 5M, 10M, 15M
•Update Rate: 4Hz, 8Hz, 16Hz, 24Hz
•Resolution: X.X(0.1mm), X.XX(0.01mm), X.XXX(0.001mm)
•Probe Interface: DUAL LEMO-00C5
•Probe Type: single crystal, double crystal
•Pulse Mode: Square waves, two-sided waves
•Pulse Width: 25~300ns, 5ns step pace
•Detection Mode: Full wave, positive half wave, negative half wave, RF, Invert
to RF
•Measurement mode: P-E(pulse-echo), E-E(echo-echo)
•Display screen: 2.4-inch 320×240 IPS_LCD
•Data storage: 520 files can be saved, and each file can record 252 sets of
thickness values
•Power Supply:Two 1.5V AA batteries
•The Normal Working Temperature Range Of The Host: Working Temperature
Range: -10℃～55℃
•Size: 153mm*76mm*37mm
•Weight: 228g

Download Data Sheet
