•Measurement Range: 1.5-240.0mm
•Receiving Gain: ≤ 100dB
•Configurable Probe Types: normal temperature probe (≤80℃, short-term measurement), high temperature probe
•Normal Temperature Probe: ≤ 80 ℃, 4MHz
•High Temperature probe: ≤ 800 ℃, 4MHz
•Accuracy: When the thickness of workpiece is less than 10mm, the error is
0.05mm; when the thickness is more than 10mm, the error is + (0.01 + H / 200)
mm (H is the thickness of workpiece).
•The Minimum Diameter (Curvature) of The Workpiece That Can Be Detected: 8mm
•The Maximum Tilt Angle of The Probe: 25°
•Probe Field Excitation Method: Permanent magnet Type of Sound Wave: Shear
wave
•Power Supply: built in lithium battery, working time not less than 2.5 hours
•The Normal Working Temperature Range of The host: -10~+50℃
•Host Storage Temperature Range: 0~+40℃
•Host Weight: 250g (with normal temperature probe)
Welcome to NCIEM.DE
- Contact Form
-
English
- Login / Register

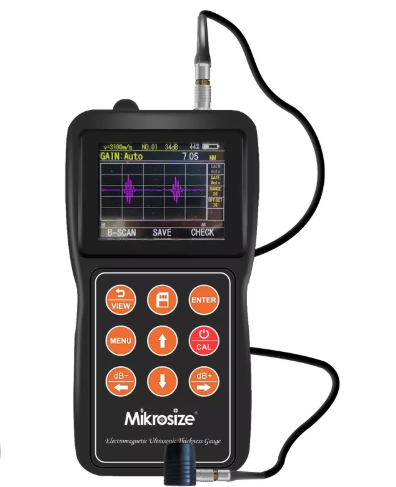

Mikrosize iThick-E20 Electromagnetic Ultrasonic Thickness Gauge
Brand
Brand names and trademarks are the property of their respective owners and are used solely for product identification.
Available To Order
Out of stock
The iThick-E20 is an electromagnetic ultrasonic thickness gauge (EMAT) manufactured by Mikrosize. Unlike standard ultrasonic gauges, it does not require a coupling agent or surface grinding, as it uses electromagnetic principles to measure thickness through coatings, rust, or air gaps.
€6,280.00
🛡️ Buy with Confidence
- Shipping: €30 flat rate across the EU
- Processing: Fast 1–2 business days
- Delivery: Typically 4–7 business days via UPS / FedEx / DHL
- Warranty: 1-year manufacturer warranty (unless stated otherwise)
- Returns: Hassle-free 30-day return policy
- Secure Checkout: SSL encrypted & PCI compliant
