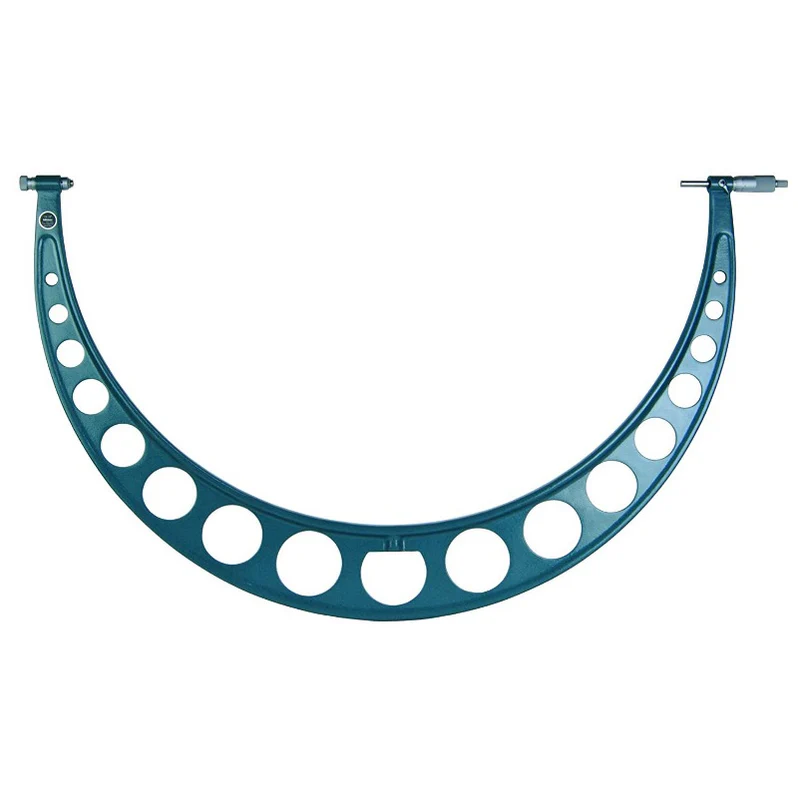

The Mitutoyo Outside Micrometer with Interchangeable Anvils features a ratchet stop function and interchangeable anvils for measuring a wide range of workpiece sizes and material types with precision. This series of micrometers with interchangeable anvils are available in inch and metric measurements. The Mitutoyo 104-202 outside micrometer is ideal for measuring metal and non-metal workpieces by controlling the amount of force applied by the spindle. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Interchangeable anvils allow for measuring a wide range of workpiece sizes.
SPECIFICATIONS
● Range: 18-24"
● Graduation: 0.001"
● Remarks: 6 Anvils & 6 Standards with Ratchet Stop
● Mass: 6.51kg
FEATURES
● Scale is laser etched on a thimble for quick and easy reading
● Speeder is always available for quick rotation of the spindle
● Carbide facing on the spindle resists wearing to keep surfaces flatter with longer accuracy
● Ratchet mechanism provides an audible click to ensure the measurement is being performed at a constant pre-set force
