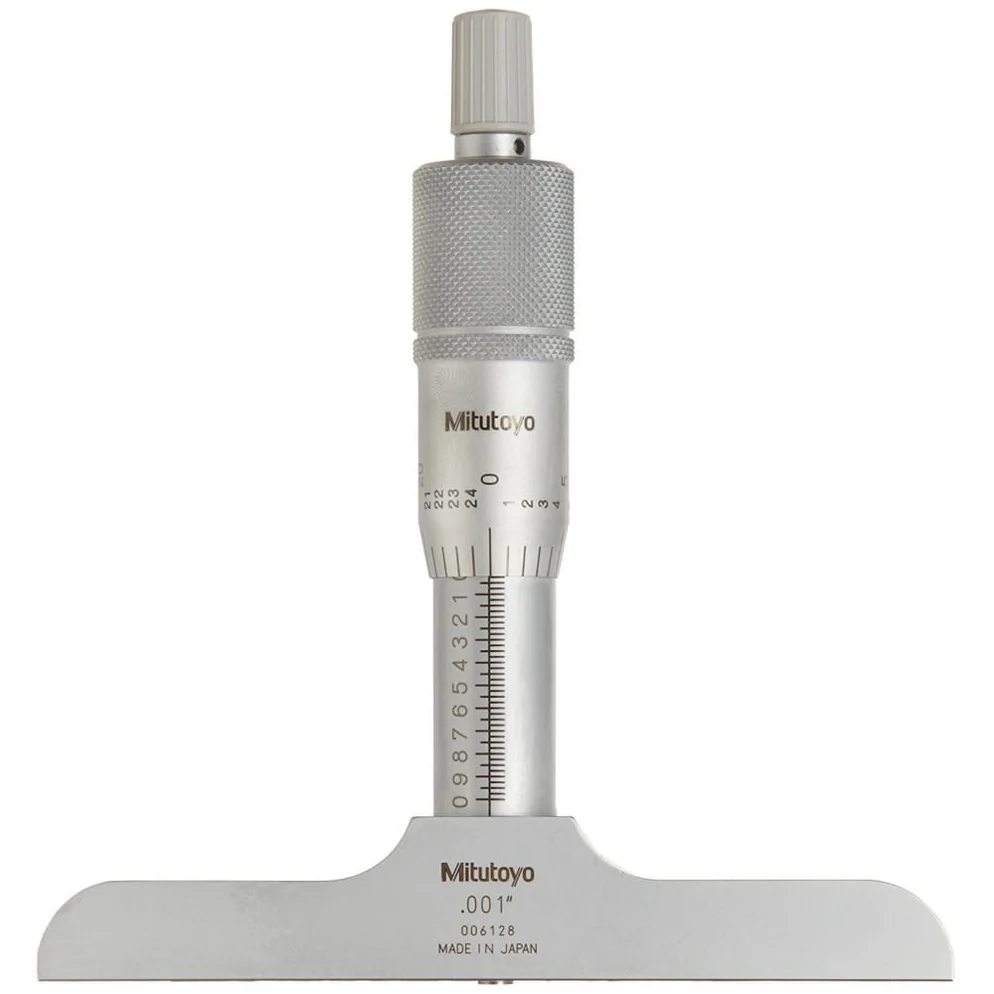

Mitutoyo 128-106 Depth Micrometer, 0-1"/ Base 4"
Mitutoyo 128-106 Depth Micrometer, 0-1"/ Base 4"

Mitutoyo 128-106 Depth Micrometer, 0-1"/ Base 4"

Brand
Mitutoyo

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

Ratchet stop ensures greater repeatability among users
€126.00

🛡️ Buy with Confidence

  • Shipping: €30 flat rate across the EU
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: National Company for Industrial Equipment Marketing NCIEM UG (haftungsbeschränkt)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: European Union Only, Policies apply to purchases made on nciem.de

 Range: 0-1 Inch
 Graduations: 0.001"
 Base Length: 4" x 0.630"
 Ratchet stop ensures greater repeatability among users
 4mm/0.157" diameter measuring rod
 With measuring rod clamp.

Technical Data
 Accuracy: ±3µm (0.00015") for micrometer head feed
 Graduation: 0.011"
 Flatness of reference face: 1.3 microns(0.00005") for 63.5mm(2.5") width base, 2 microns (0.00008") for 101.6mm(4") width base
 Flatness of measuring rod face: 0.3 microns
 Parallelism between reference face and measuring rod face: (4+L/50) microns, L=Max. measuring length (mm)
 Measuring rod diameter: 4mm (0.157")

Download Data Sheet
