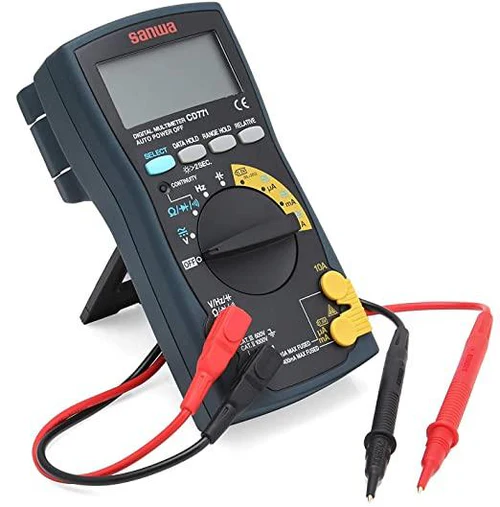

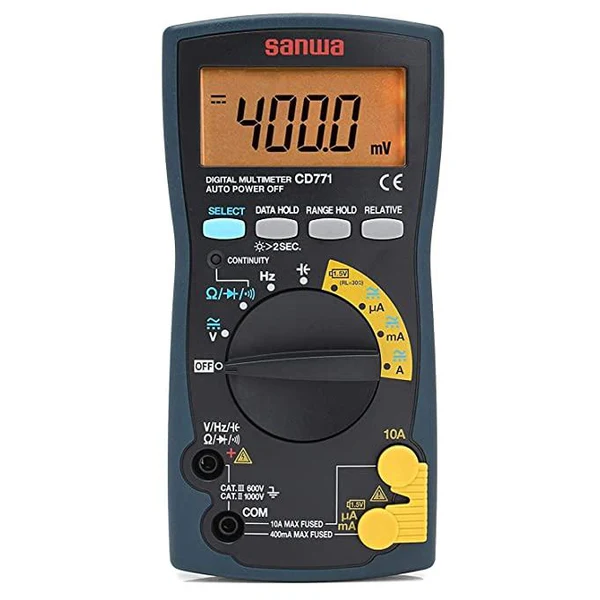

Sanwa CD771 Digital Multimeter with Backlight & Continuity Buzzer with LED

Description

The Sanwa CD771 is a multifunctional digital multimeter known for its durability and ease of use, featuring a large, backlit LCD and a reinforced body. While not a True RMS meter, it offers standard measurement capabilities suitable for low-power circuit analysis and electronics repair.

Key Features

• Display: Features a 4000-count display on a large LCD, with a backlight for improved visibility in dimly lit areas.
• Body construction: The outer case is made from a thermoplastic elastomer (TPE) material, providing high resistance against drops and impacts.
• Continuity check: An audible buzzer and a red LED provide both sound and light indicators for quick and clear continuity checks.
• Safety features: Includes a safety cap on the current terminal and a large breaking capacity fuse (30kA) to protect the user from overcurrent incidents. It is rated for CAT III 600V and CAT II 1000V applications.
• Auto power off: The meter includes a power-saving function that automatically shuts off the device after 30 minutes of inactivity, which can be canceled if needed.
• Special functions: Features include data hold (freezes a reading), range hold (locks the measurement range), relative function (zeroes the display to show relative changes), and a 1.5V battery check.
