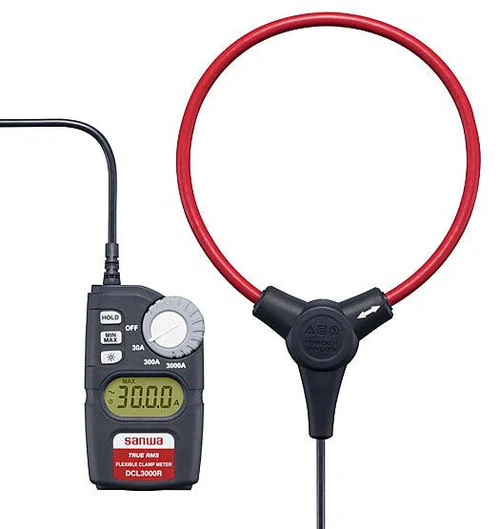

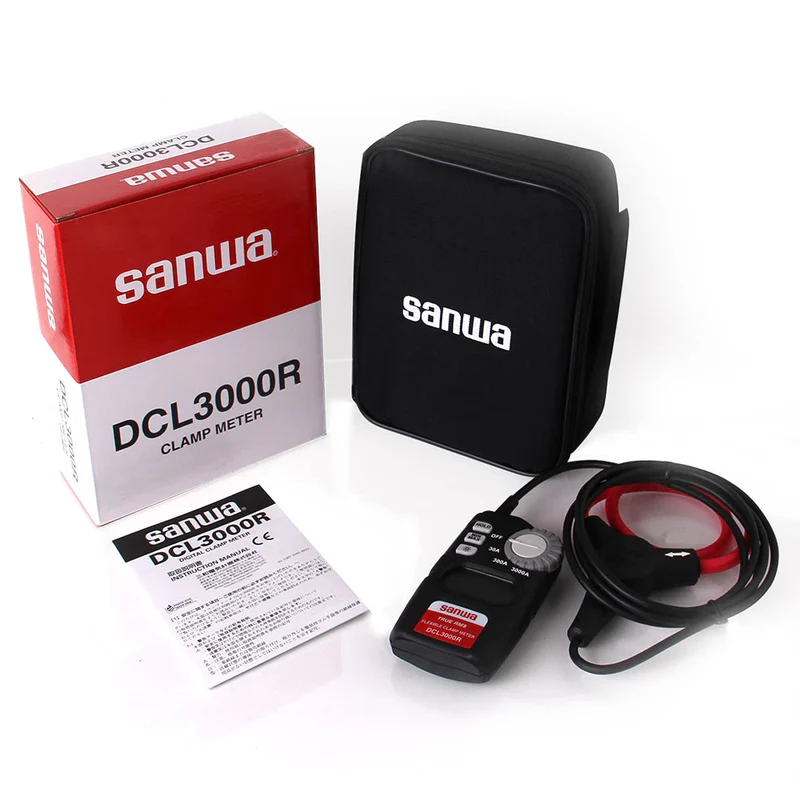

Sanwa DCL3000R True RMS AC Clamp Meter with Flexible Conductor
Sanwa DCL3000R True RMS AC Clamp Meter with Flexible Conductor
Sanwa DCL3000R True RMS AC Clamp Meter with Flexible Conductor
Sanwa DCL3000R True RMS AC Clamp Meter with Flexible Conductor
Sanwa DCL3000R True RMS AC Clamp Meter with Flexible Conductor
Sanwa DCL3000R True RMS AC Clamp Meter with Flexible Conductor

Sanwa DCL3000R True RMS AC Clamp Meter with Flexible Conductor

Brand
SANWA

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

DescriptionThe Sanwa DCL3000R is a True RMS AC clamp meter featuring a flexible current sensor. This design allows it to measure AC current in confined or hard-
€350.00

🛡️ Buy with Confidence

  • Shipping: €30 flat rate across the EU
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: National Company for Industrial Equipment Marketing NCIEM UG (haftungsbeschränkt)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: European Union Only, Policies apply to purchases made on nciem.de
Description

The Sanwa DCL3000R is a True RMS AC clamp meter featuring a flexible current sensor. This design allows it to measure AC current in confined or hard-to-reach spaces where a traditional clamp meter would not fit.

Key Features
  • Flexible sensor (CT): The air-core flexible sensor can be looped around conductors up to 150 mm in diameter, which is especially useful for tight spots.
  • True RMS measurement: The meter measures the True Root Mean Square value of AC current, which provides accurate readings for non-sinusoidal waveforms.
  • High-current capacity: It can measure AC currents up to 3000 A, with a maximum overload protection input of 5000 A.
  • Clear digital display: The large 3150-count LCD includes a backlight for easy viewing in dimly lit areas.
  • Data functions: It features data hold to freeze the current reading on the display and Min/Max value hold to capture the minimum and maximum measured values.
  • Power-saving: To conserve battery life, the meter has an auto-power-off feature that activates after 15 minutes of inactivity.
  • Built-in light: An integrated LED light helps to illuminate the measurement target.
Download Data Sheet
