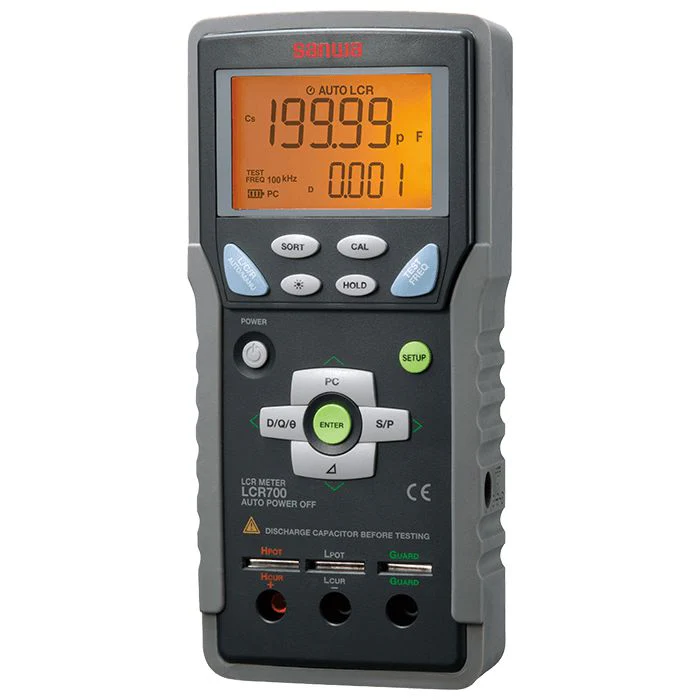

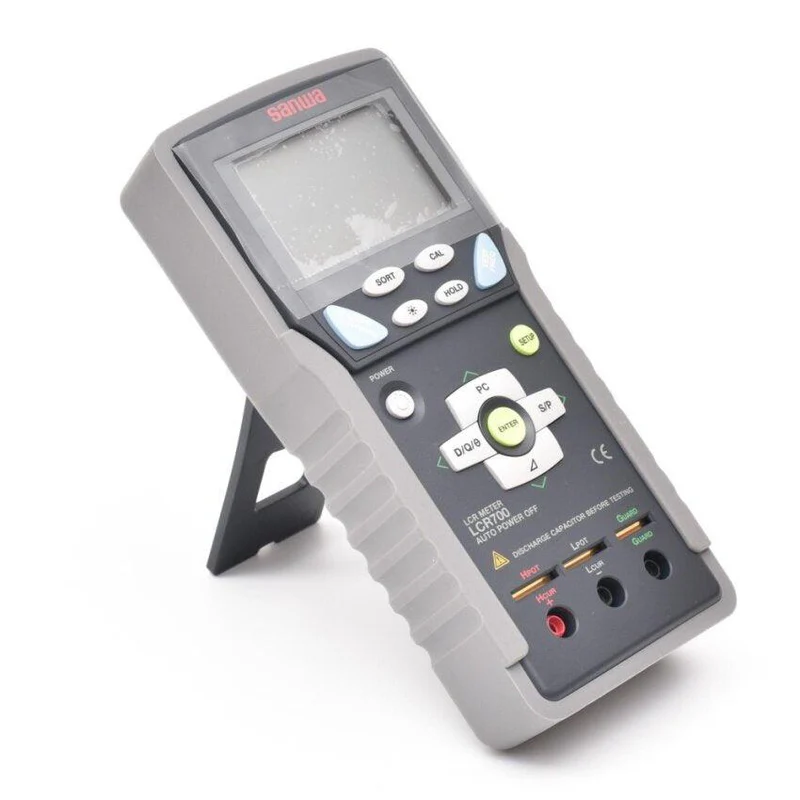

Sanwa LCR700 Handheld Digital LCR Meter

Description

The Sanwa LCR700 is a high-performance handheld digital LCR meter used for measuring the inductance (L), capacitance (C), and resistance (R) of electronic components. It is designed for both laboratory and field use, with features that rival many larger, benchtop LCR meters.

Key Features

• Measurement frequencies: It has five selectable measuring frequencies (100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz) for detailed component analysis.
• Device sorting mode: This function allows users to quickly sort passive components (L, C, R) during tasks like incoming quality inspections.
• Display: The device features a dual 20,000/2,000-count digital display with a backlight for clear visibility.PC connectivity (optional): With the optional "LCR-USB" communication unit and companion software, measured data can be transferred to a computer.
• Calibration: The meter includes a calibration function to ensure accurate measurements, especially for low impedance components.
• Portability: The LCR700 is a compact, handheld device that is both lightweight and portable.
• Measurement functions: The LCR700 offers a variety of measurement modes and parameters, including:

             1. LCR mode: Automatically detects and measures inductance, capacitance, or resistance.

             2. Series/Parallel modes: Selectable modes for analyzing components based on their equivalent circuit.

             3. Sub-parameters: Provides measurements for Dissipation Factor (D), Quality Factor (Q), Phase Angle (\(\theta \)), and Equivalent Series Resistance.

             4. DC resistance: Can also measure DC resistance across seven different ranges.
