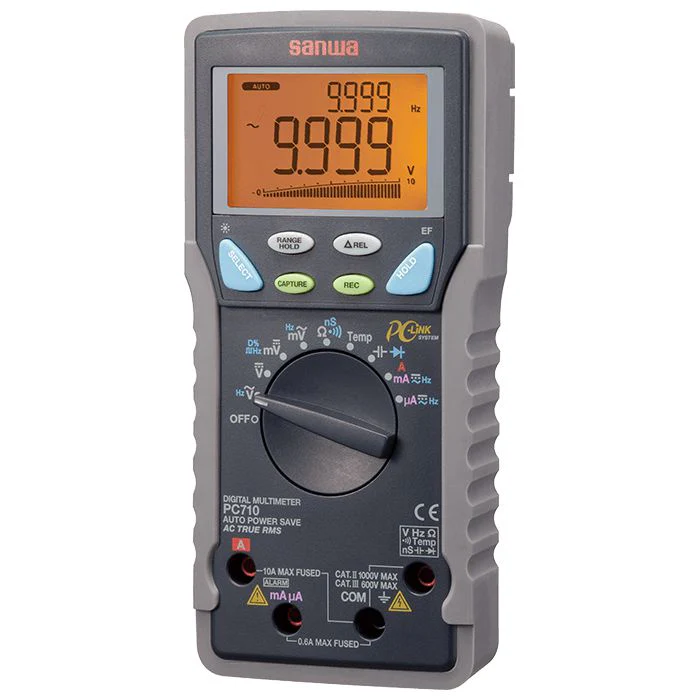

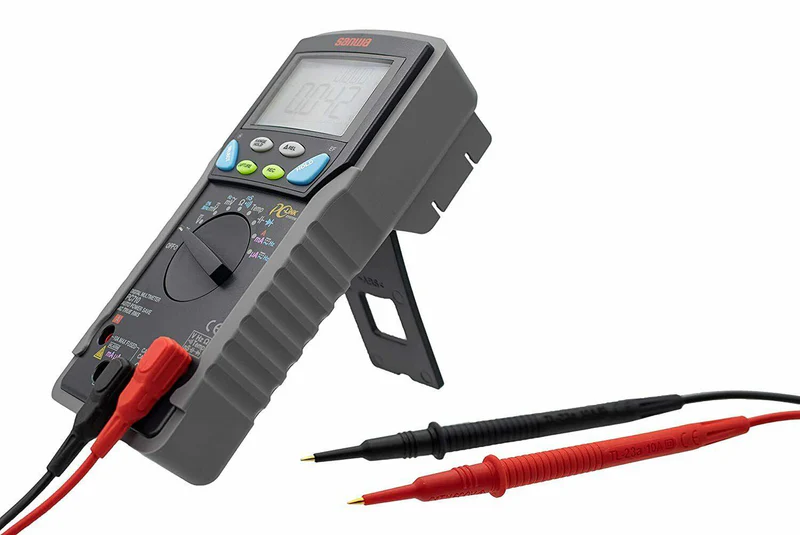

Key Features- High accuracy: The PC710 offers a best accuracy of 0.06% on DC voltage, making it suitable for precision measurements.
- True RMS: It features True RMS (Root Mean Square) detection, which allows for accurate measurement of non-sinusoidal AC voltage and current waveforms.
- Dual display with backlight: The multimeter can show two different measurements simultaneously. The backlight makes it easy to read in dimly lit areas.
- High count display: It provides a maximum count of 9999 digits, which offers a high degree of resolution for more precise readings.
- Electric field (EF) detection: A unique feature of the PC710 is its ability to detect the strength of an electric field without contact, a useful function for working with power lines.
- Wide measurement ranges: It can measure a wide variety of parameters, including:
1. Voltage: Up to 1000V AC/DC. 2. Current: Up to 10A AC/DC. 3. Resistance: Up to 60 MΩ.
4. Capacitance: Up to 25 mF.
5. Frequency: Up to 50 kHz.
6. Temperature: From -50°C to 1000°C (with optional K-type thermocouple). - PC connectivity: With an optional optical USB interface (PC Link 7 software and KB-USB7 cable), users can log data and analyze measurements on a computer.
- Safety rating: It holds safety ratings of CAT II 1000V and CAT III 600V, providing a high level of protection.
|
