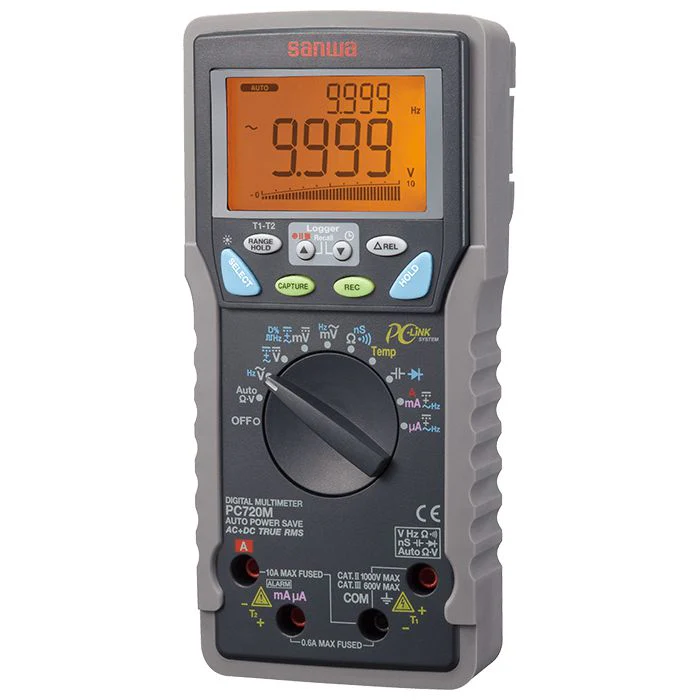

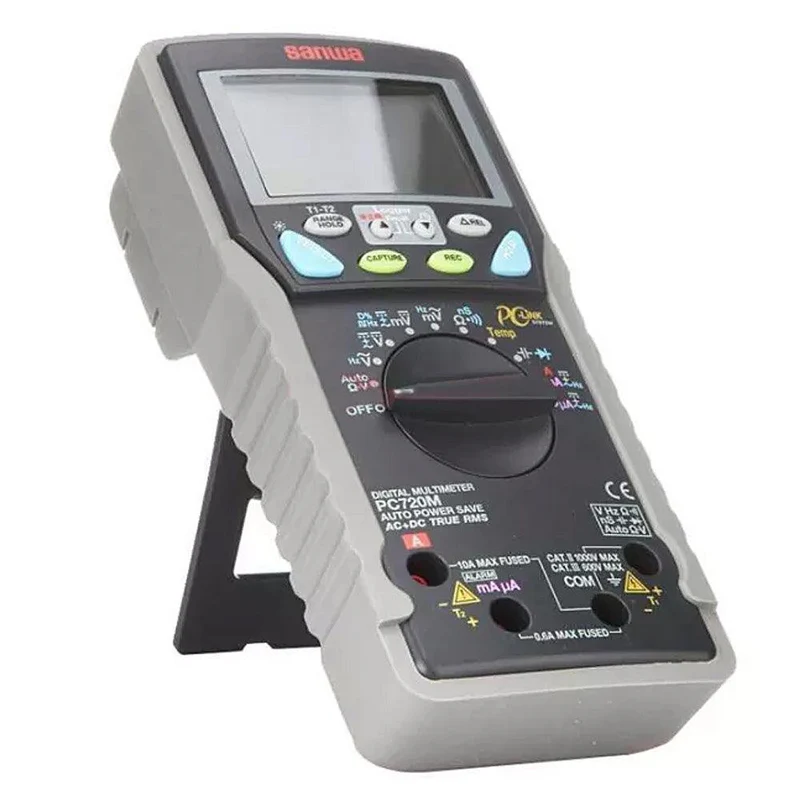

DescriptionThe Sanwa PC720M is a high-accuracy digital multimeter designed for professional use, featuring true-root-mean-square (True RMS) measurement, data logging, and PC connectivity. It is rated for low-voltage applications but can also handle measurements on main voltage outlets. |
Key FeaturesTrue RMS: Provides accurate measurements of AC current and voltage, even for non-sinusoidal (non-pure sine wave) signals. Dual display: A dual-display with a backlight can simultaneously show two different electrical quantities, such as voltage and frequency, or AC and DC components. High-speed analog bar graph: A 41-segment analog bar graph offers a fast response time, mimicking the quick changes shown by a traditional analog meter. Data logging: A key feature of the PC720M is its ability to log measurements to an internal memory. 1. It can store up to 87,328 data points for single-display measurements. 2. For dual-display measurements, it stores up to 43,664 data points. 3. The user can set the measurement interval for recording. PC link: Data can be exported to a computer for analysis via an optional optical USB cable (KB-USB7) and the PC Link7 software. The software allows for multi-window graphing, analysis, and data saving in a CSV format. High accuracy: It boasts a high degree of precision, with a best DC voltage accuracy of ±(0.06% + 2 digits). Safety ratings: The meter is rated IEC/EN61010-1 CAT.II 1000V and CAT.III 600V. Auto power save: To extend battery life, the meter automatically powers off after about 30 minutes of inactivity, though this function can be disabled. Additional measurement functions: Includes temperature measurement with an optional K-type thermocouple, conductance measurement, logic frequency, and duty cycle. |
