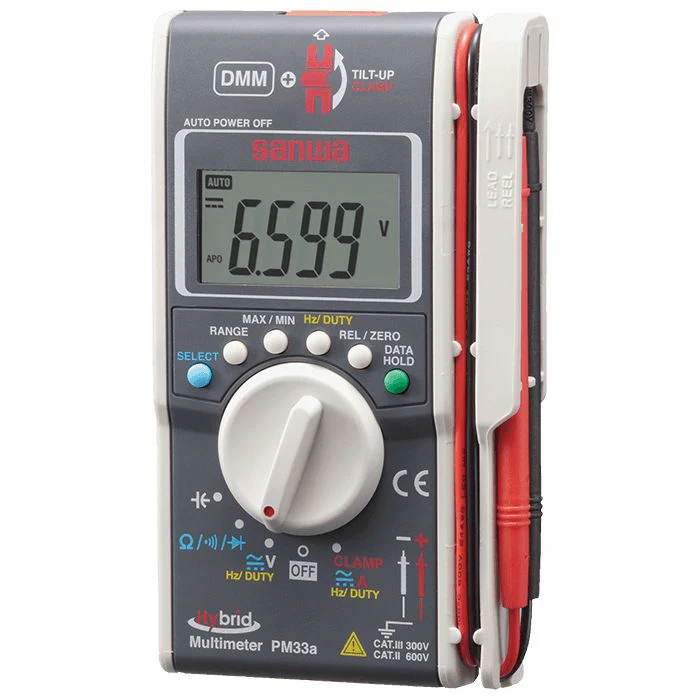

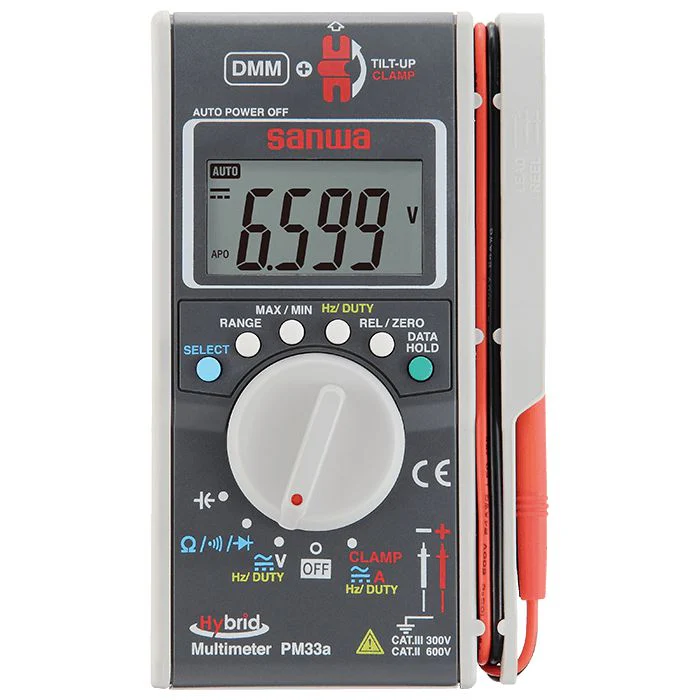

Key Features- Hybrid functionality: The PM33a combines a digital multimeter and a clamp meter in a single, portable device.
- Open-end clamp sensor: It features a thin, U-shaped clamp that is only 7 mm thick, allowing for easy current measurements in confined or hard-to-reach spaces.
- AC and DC current measurement: Unlike many basic clamp meters, the PM33a can measure both AC and DC current up to 100A using the open clamp sensor.
- Compact and lightweight: Weighing approximately 160g and measuring 130 x 75 x 19.9 mm, the meter is designed for lightweight portability.
- Measurement functions: In addition to current, the PM33a performs standard DMM measurements including AC/DC voltage, resistance, capacitance, frequency, and duty cycle.
- Safety rating: The meter is compliant with IEC61010 standards, rated CAT III 300V and CAT II 600V, ensuring user safety for measurements within its specified ranges.
- Convenient features: Includes a data hold function to freeze readings, a MAX/MIN hold to capture the highest and lowest values, relative measurement mode, and an auto-power-off function.
- Integrated probes: The test leads are permanently attached to the device, which makes it even more compact but means the leads are not replaceable.
|
